System Diagram

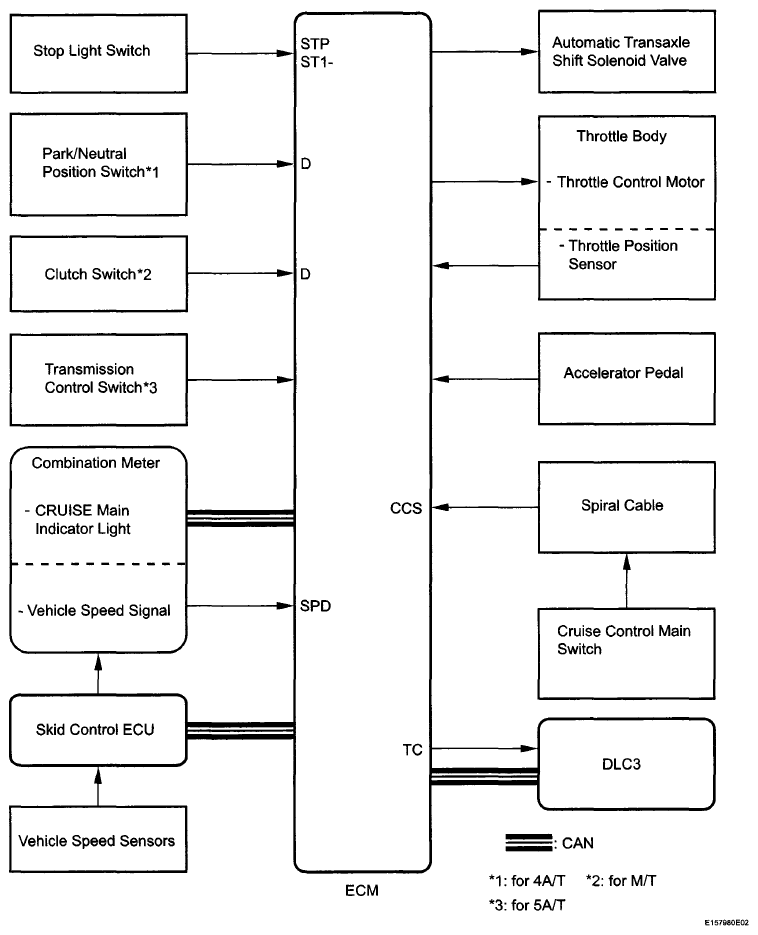

Fig 1: Cruise Control System Diagram
G06043019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Sander Receiver Signal Line
ECM Combination Meter ECU CRUISE main indicator operation signal CAN
