Fog Light Assembly: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FOG LIGHT BULB
    1. Install the fog light bulb as shown in the illustration.

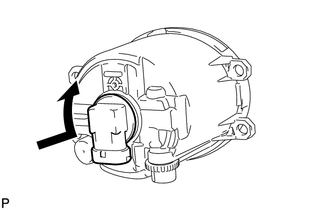

      Fig 1: Installing Fog Light Bulb
      GTY141687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
