Remote Up / Down Function does not Operate: Wiring Diagram

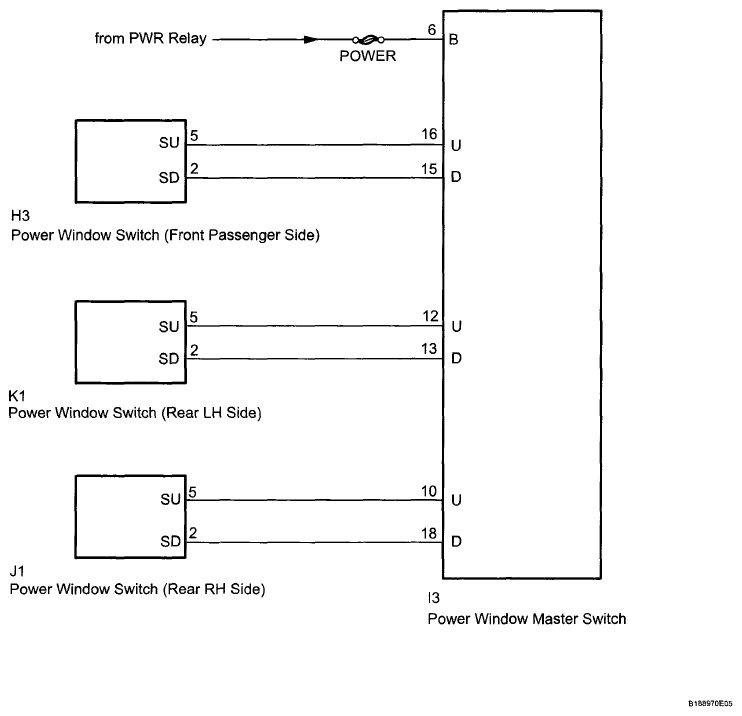

Fig 1: Remote Up / Down Function - Wiring Diagram

G06038067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
