Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

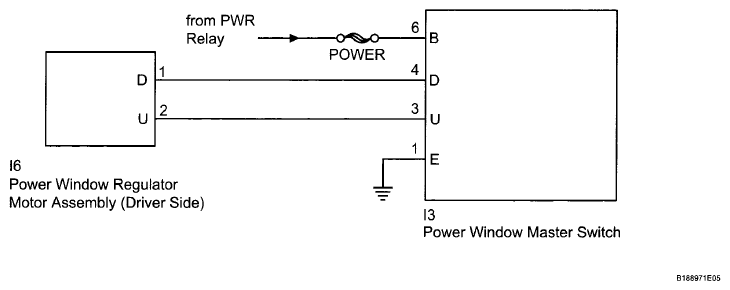

Fig 1: Power Window Master Switch (Driver Side) - Wiring Diagram
G06038074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
