Navigation Receiver Assembly Power Source Circuit: Wiring Diagram

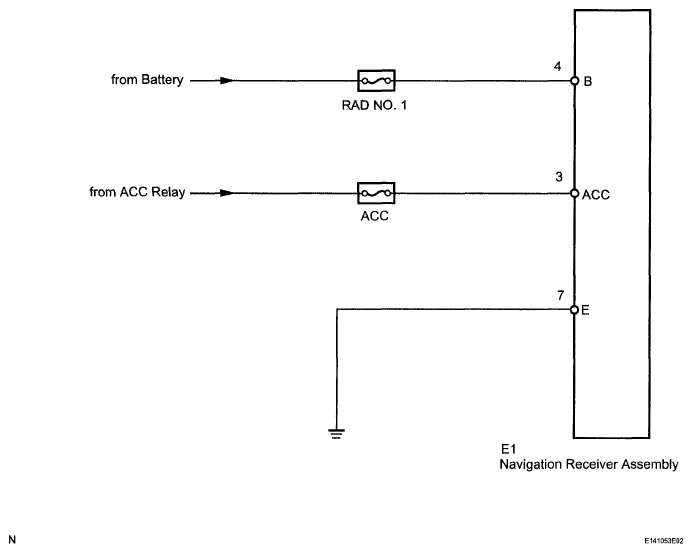

Fig 1: Navigation Receiver Assembly Power Source Circuit - Wiring Diagram

G06010779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
