Audio And Visual System
>>
Stereo Component Amplifier Power Source Circuit
>>
Wiring Diagram

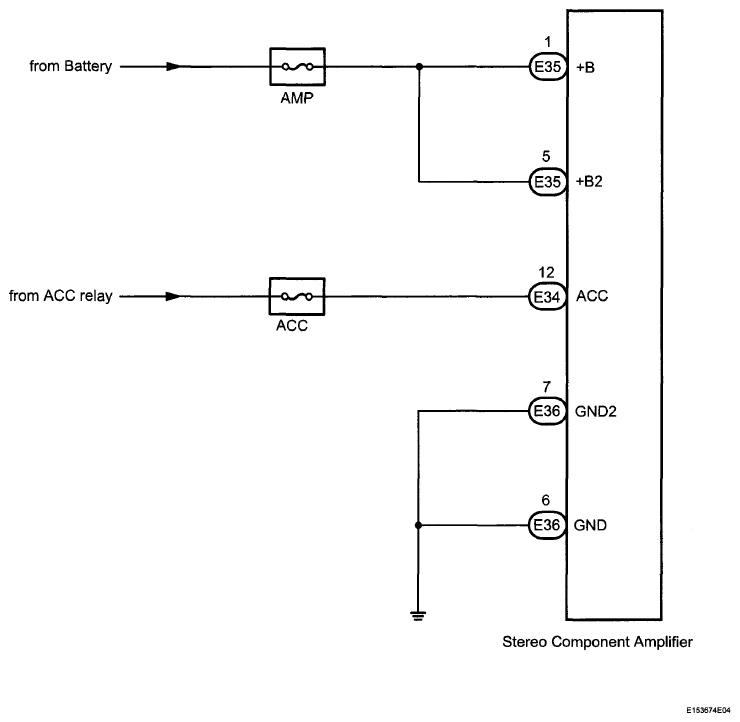

Stereo Component Amplifier Power Source Circuit: Wiring Diagram
Fig 1: Stereo Component Amplifier Power Source Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
