Steering Pad Switch Circuit: Wiring Diagram

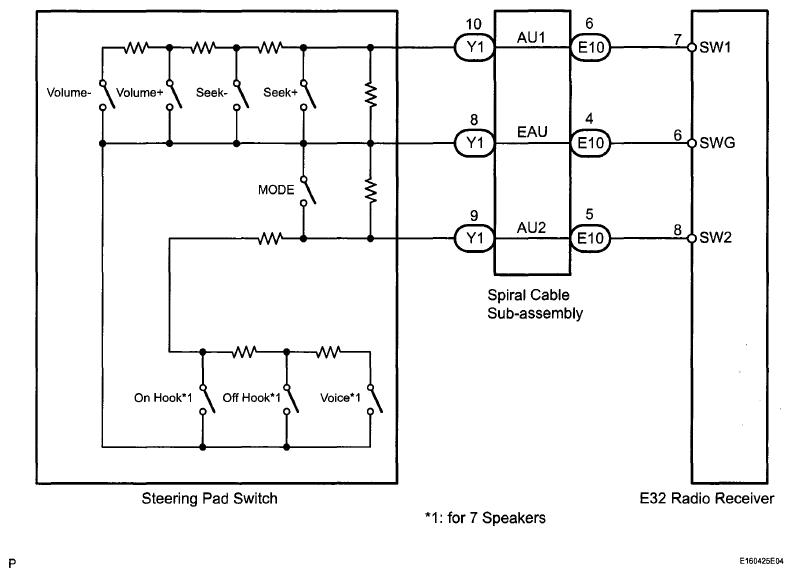

Fig 1: Steering Pad Switch Circuit - Wiring Diagram

G06035701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
