Steering Angle Sensor Communication Stop Mode: Wiring Diagram

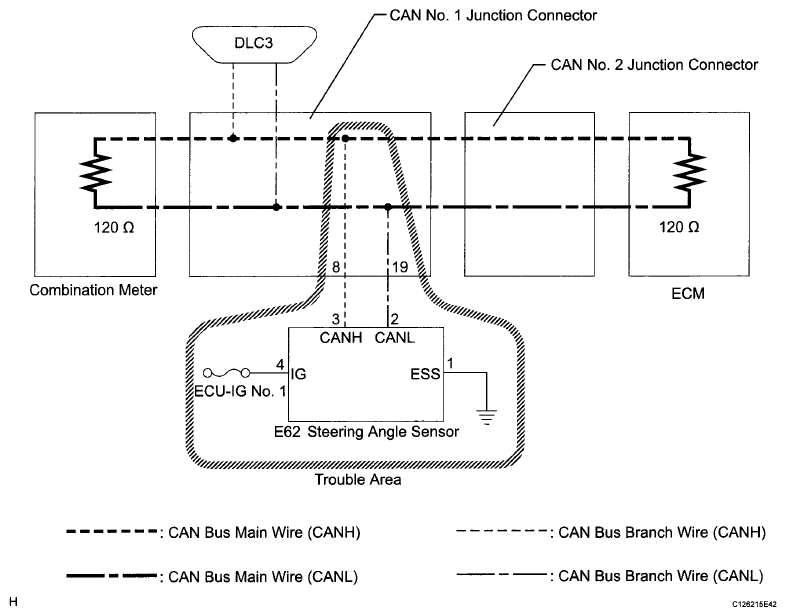

Fig 1: Steering Angle Sensor Communication - Wiring Diagram

G06036166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
