Open in CAN Main Bus Line: Wiring Diagram

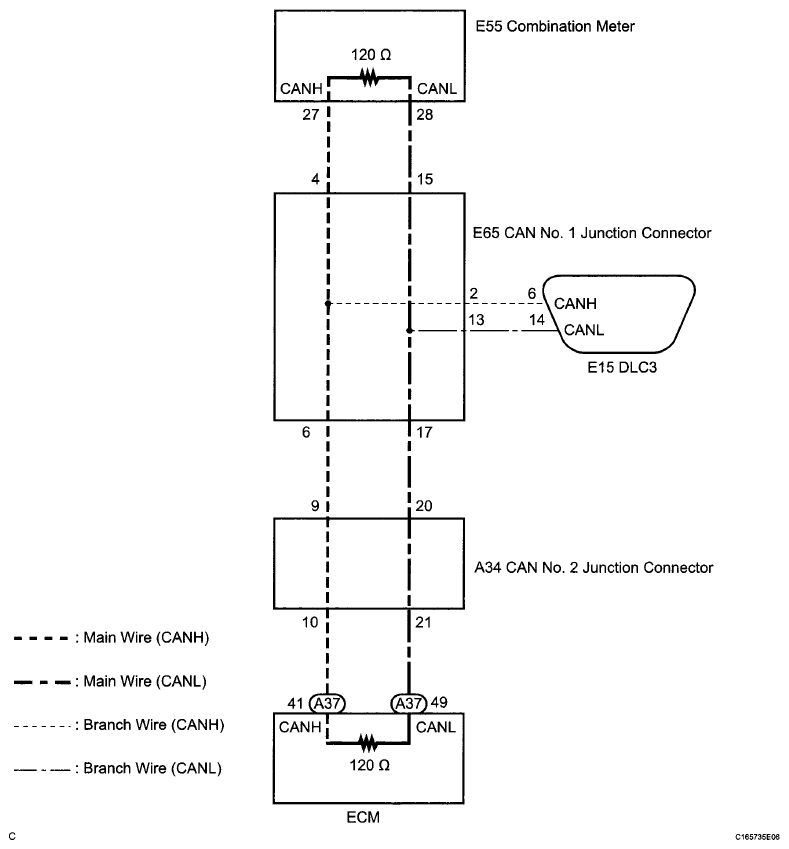

Fig 1: CAN Main Bus Line - Wiring Diagram

G06036183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
