Main Body ECU Communication Stop Mode: Wiring Diagram

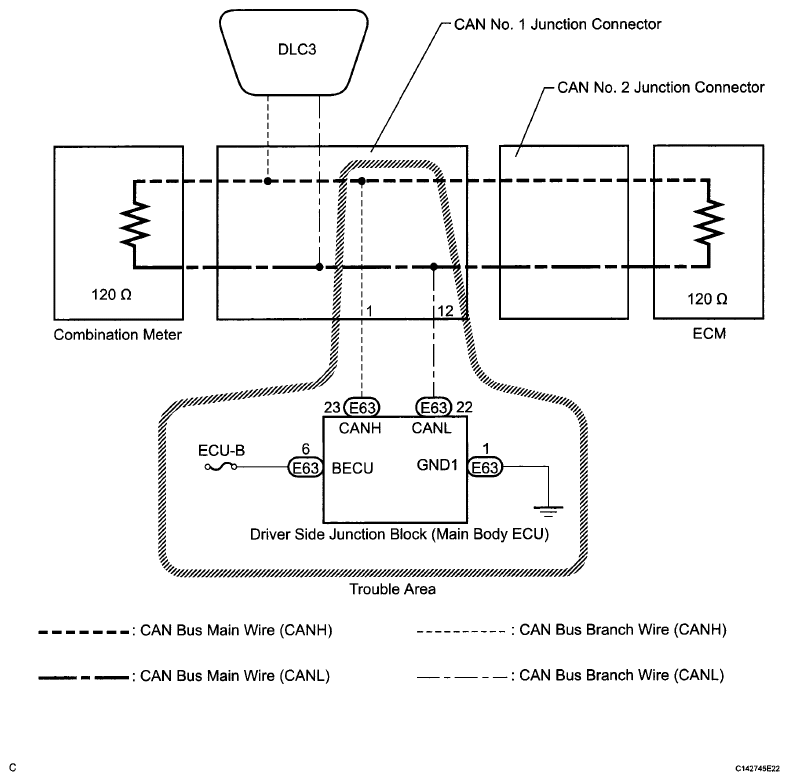

Fig 1: Main Body ECU Communication - Wiring Diagram

G06036174

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
