Park / Neutral Position Switch: Adjustment

Loosen the bolts of the park/neutral position switch and move the shift lever to N.

Fig 1: Locating Park/Neutral Position Switch Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Align the groove with the neutral basic line.

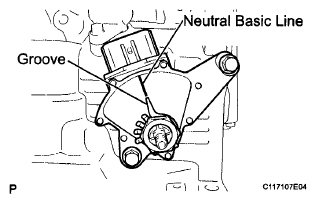

Fig 2: Aligning Groove With Neutral Basic Line
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Hold the switch in position and tighten the 2 bolts.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Fig 3: Locating Park/Neutral Position Switch Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
After the adjustment, perform the switch operation check (See ON-VEHICLE INSPECTION ).
