Differential Oil Seal: Components

Fig 1: Identifying Differential Oil Seal Components (1 Of 2)
G06045030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

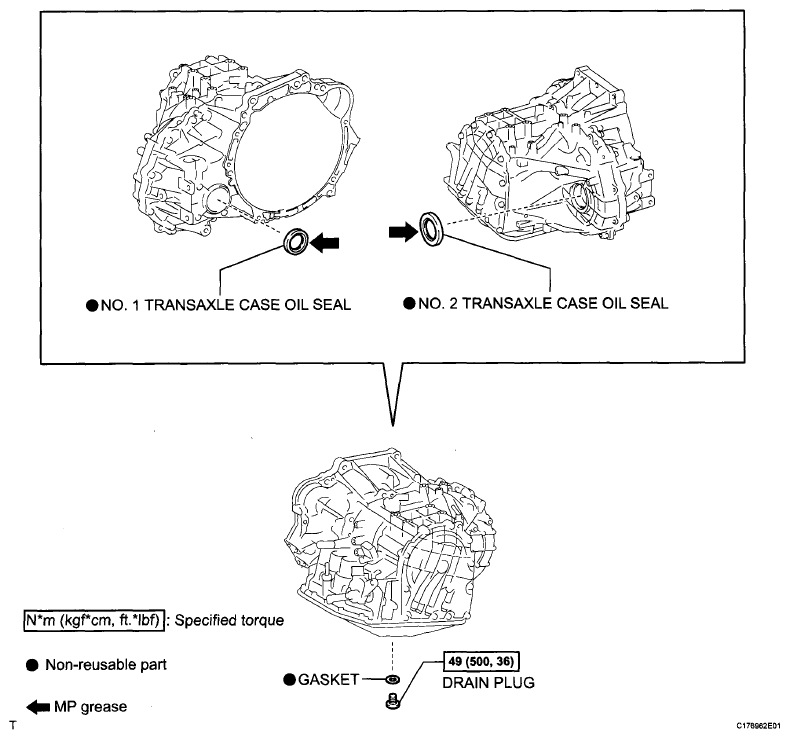

Fig 2: Differential Oil Seal Replacement Components With Torque Specifications (2 Of 2)
G06044554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
