Terminals Of Ecu

TELLTALE LIGHT ASSEMBLY

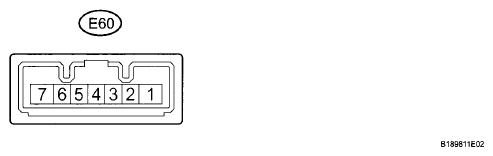

Fig 1: Identifying Terminals Of E60 Telltale Light Assembly Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Voltage

CONNECTOR TERMINALS REFERENCE

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
E60-4 (B) - Body ground	V - Body ground	Backup power supply	Always	Below 1 V → 11 to 14 V
E60-3 (L) - Body ground	W - Body ground	Passenger seat belt signal	The passenger seat is occupied, seat belt is fastened → unfastened	11 to 14 V → Below 1 V ↔ 11 to 14 V
