Rear Seat Inner Belt Assembly: Installation

INSTALL REAR SEAT CENTER INNER BELT ASSEMBLY
1. Install the rear seat center inner belt assembly with the bolt.
  Torque: 41 N*m (420 kgf*cm, 30 ft.*lbf)

  NOTE: Do not allow the anchor part of the rear seat center inner belt assembly to overlap the protruding part of the floor panel.

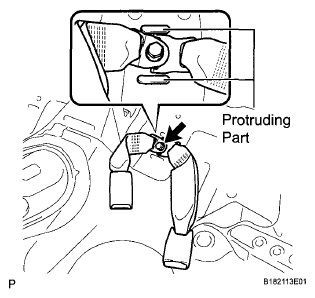

  Fig 1: Identifying Rear Seat Center Inner Belt Assembly With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT INNER BELT ASSEMBLY
1. Install the rear seat inner belt assembly with the bolt.
  Torque: 41 N*m (420 kgf*cm, 30 ft.*lbf)

  NOTE: Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part of the floor panel.
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )

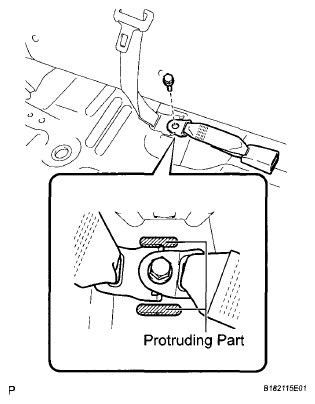

Fig 2: Identifying Rear Seat Inner Belt Assembly With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
