Home >> Toyota >> 2009 >> Matrix Base, Automatic >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Seat Belt >> Front Seat Outer Belt Assembly With PRETENSIONER >> Components

Front Seat Outer Belt Assembly With PRETENSIONER: Components

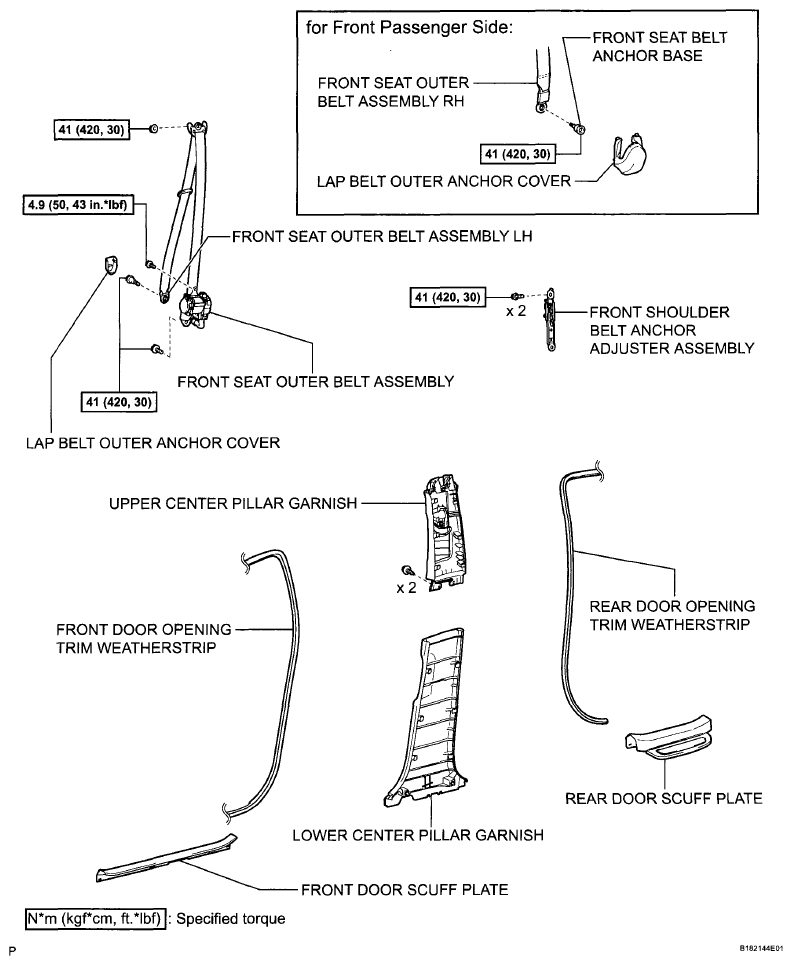

Fig 1: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications

G06037335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
