Front Seat Inner Belt Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
  2. REMOVE FRONT SEAT HEADREST ASSEMBLY
  3. REMOVE OUTER SEAT TRACK COVER  (See REMOVAL )
  4. REMOVE INNER SEAT TRACK COVER  (See REMOVAL )
  5. REMOVE INNER SEAT TRACK COVER (for 4WD RH Side)  (See REMOVAL )
  6. REMOVE FRONT SEAT ASSEMBLY  (See REMOVAL )
  7. REMOVE FRONT SEAT INNER BELT ASSEMBLY
    1. Disconnect each connector and clamp.
    2. Remove the nut and the front seat inner belt assembly.

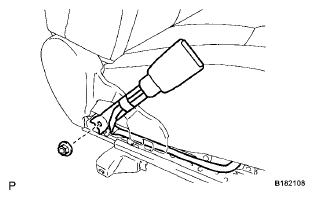

    Fig 1: Identifying Front Seat Inner Belt Assembly And Nut
    G06037332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
