Child Restraint Seat Anchor Bracket: Components

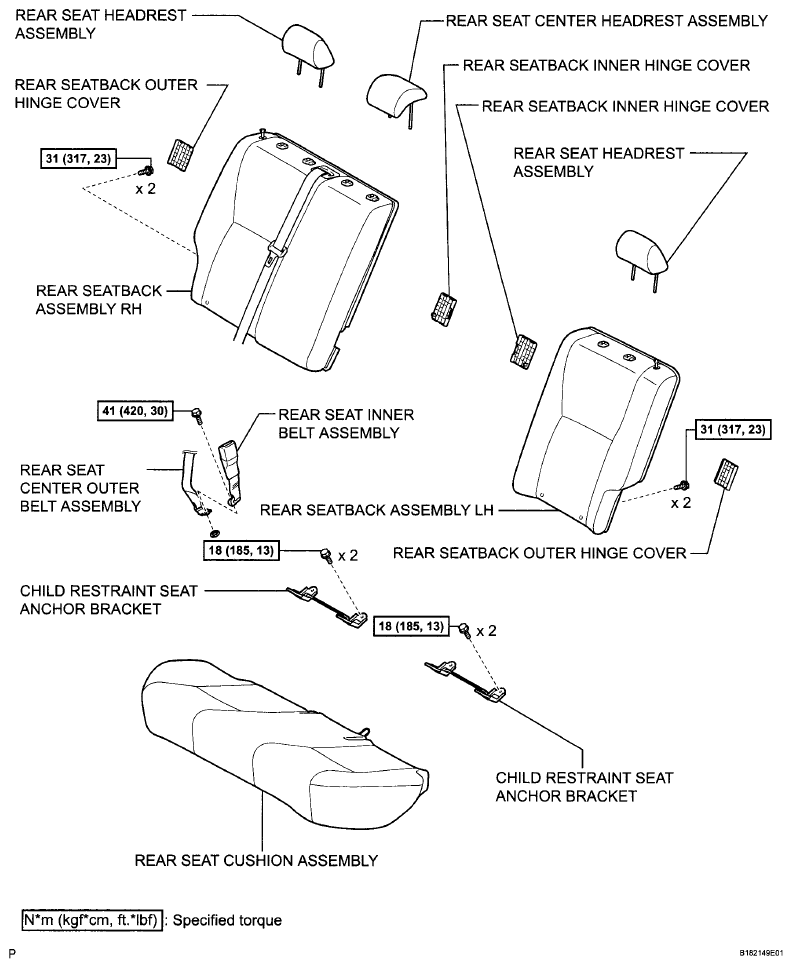

Fig 1: Child Restraint Seat Anchor Bracket Replacement Components With Torque Specifications

G06037402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
