Spiral Cable: Inspection

INSPECT SPIRAL CABLE

If there are any defects as mentioned below, replace the spiral cable with a new one:

Fig 1: Identifying Claws, Pins And Spiral Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Scratches, cracks, dents or chips on the connector or the spiral cable.

Inspect the spiral cable.

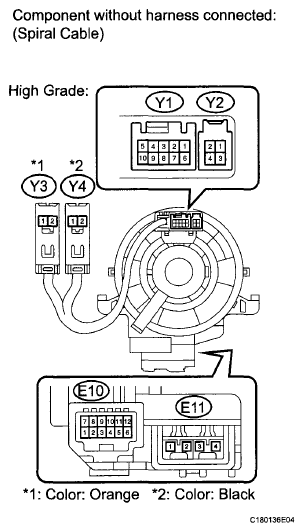

Fig 2: Identifying Spiral Cable

G06036991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value (s) in the table below.

NOTE: To avoid breakage of the spiral cable, do not turn the spiral cable more than necessary.

If the value is not within the specified range, replace the spiral cable.

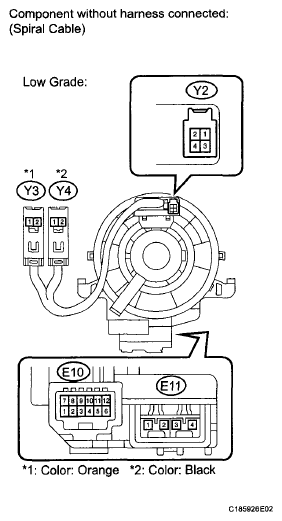

Fig 3: Checking Spiral Cable

G06036992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester connection	Condition	Specified condition
Y1-1 - E6-8 (HO)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-5-E6-12 (IL+2)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-6 - E6-2 (ECC)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-8 - E6-4 (EAU)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-9 - E6-5 (AU2)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-10 - E6-6 (AU1)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y2-2 - E6-8 (HO)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y2-3 - E6-1 (CCS)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y2-4 - E6-2 (ECC)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y3-1 (D-) - E11-2 (D-)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y3-2 (D+) - E11-1 (D+)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y4-1 (D2-) - E11-3 (D2-)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y4-2 (D2+) - E11-4 (D2+)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
