Seat Position Sensor: Components

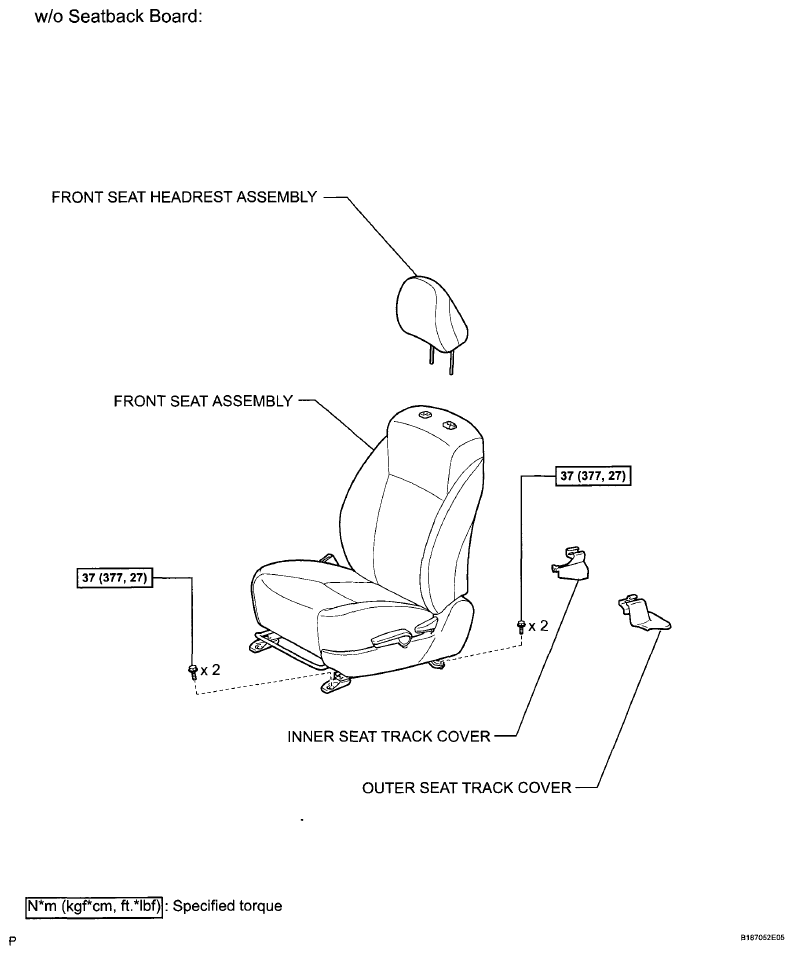

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications (1 Of 4)
G06037080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

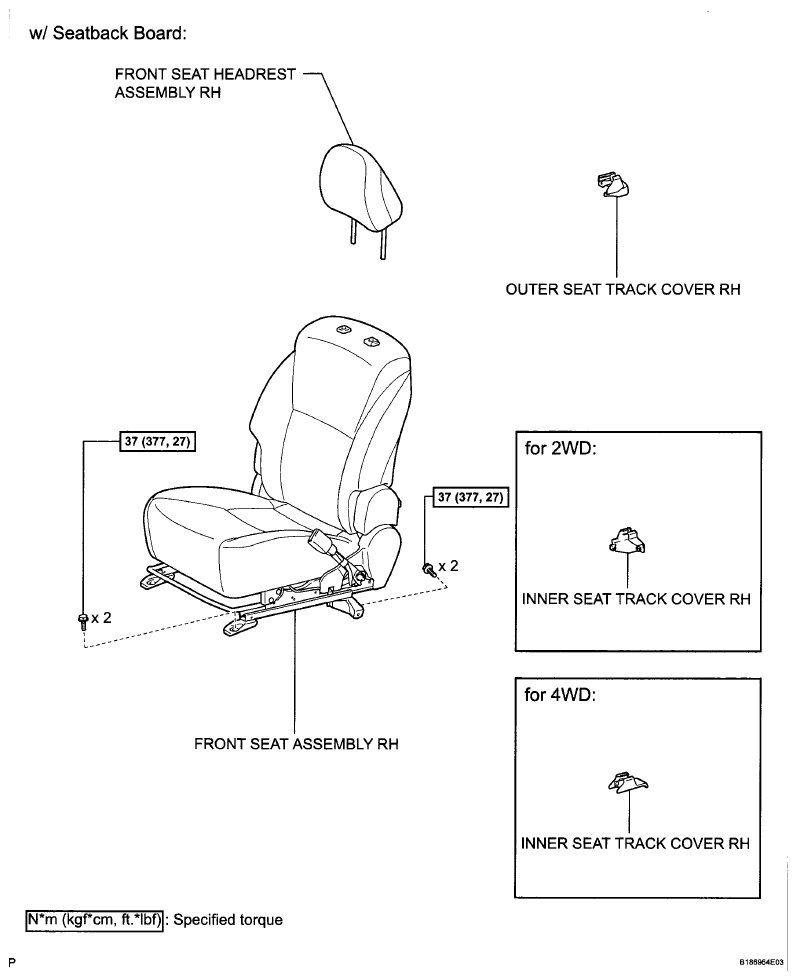

Fig 2: Seat Position Sensor Replacement Components With Torque Specifications (2 Of 4)
G06037081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

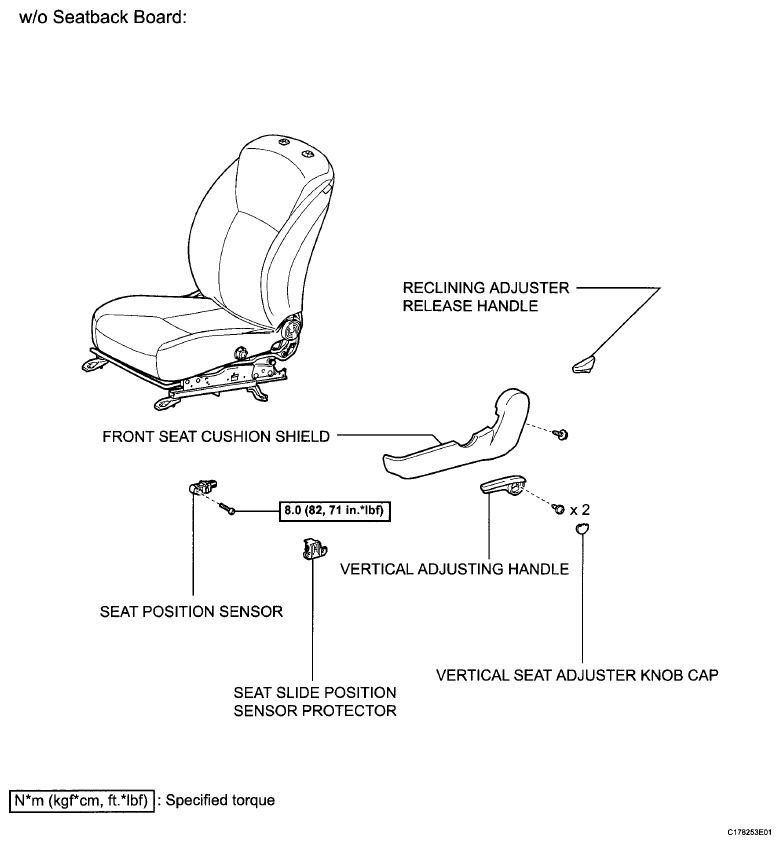

Fig 3: Seat Position Sensor Replacement Components With Torque Specifications (3 Of 4)
G06037082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

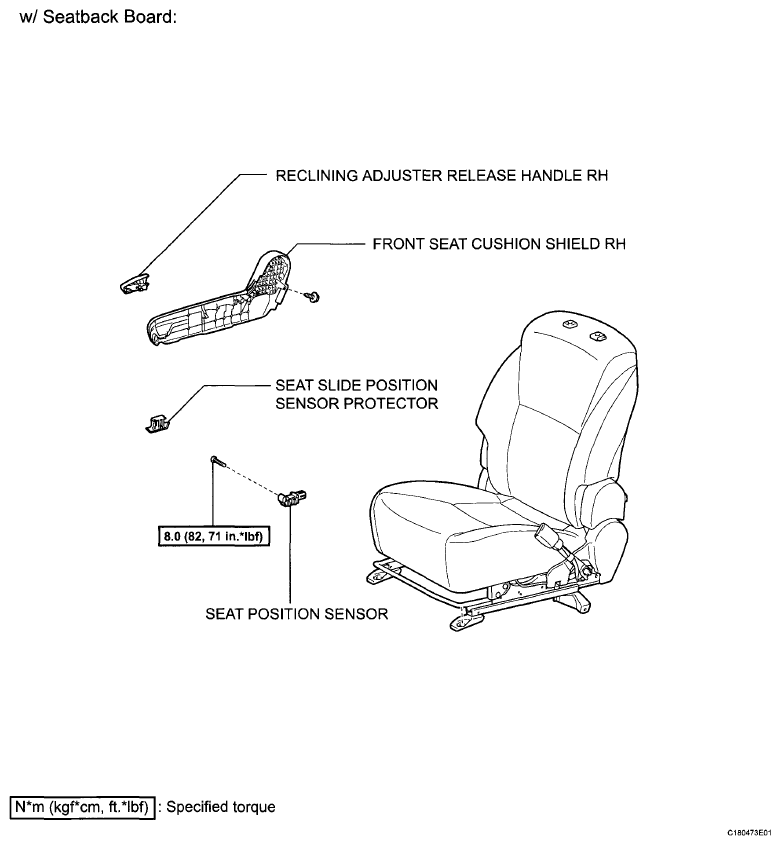

Fig 4: Seat Position Sensor Replacement Components With Torque Specifications (4 Of 4)
G06037083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
