Rear Airbag Sensor: Components

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications (1 Of 2)
G06037076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

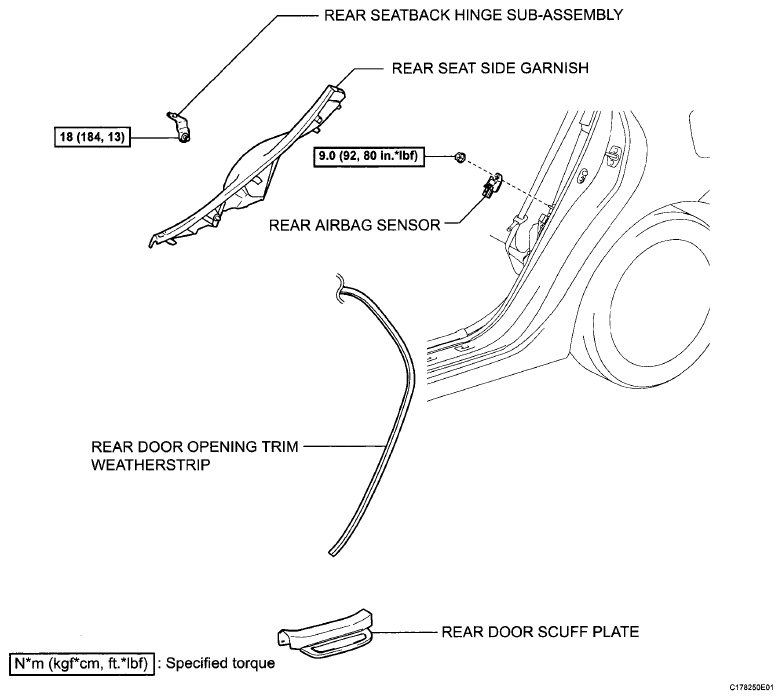

Fig 2: Rear Airbag Sensor Replacement Components With Torque Specifications (2 Of 2)
G06037077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
