Refrigerant Line: Components

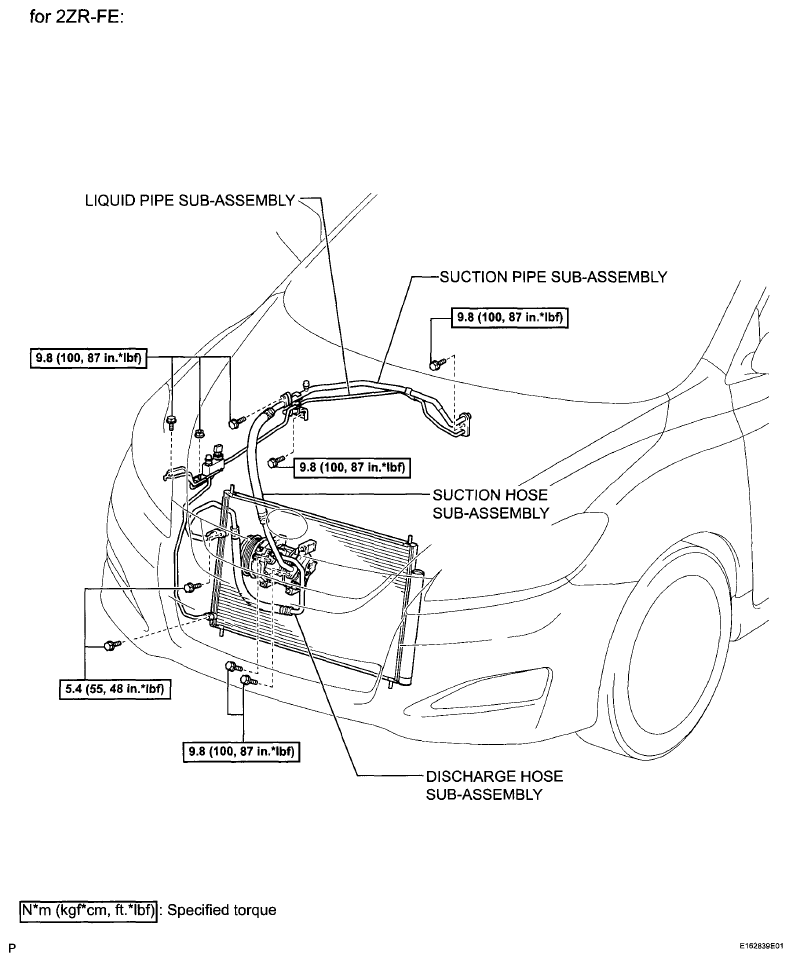

Fig 1: Refrigerant Line Replacement Components With Torque Specifications (1 Of 2)
G06037509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

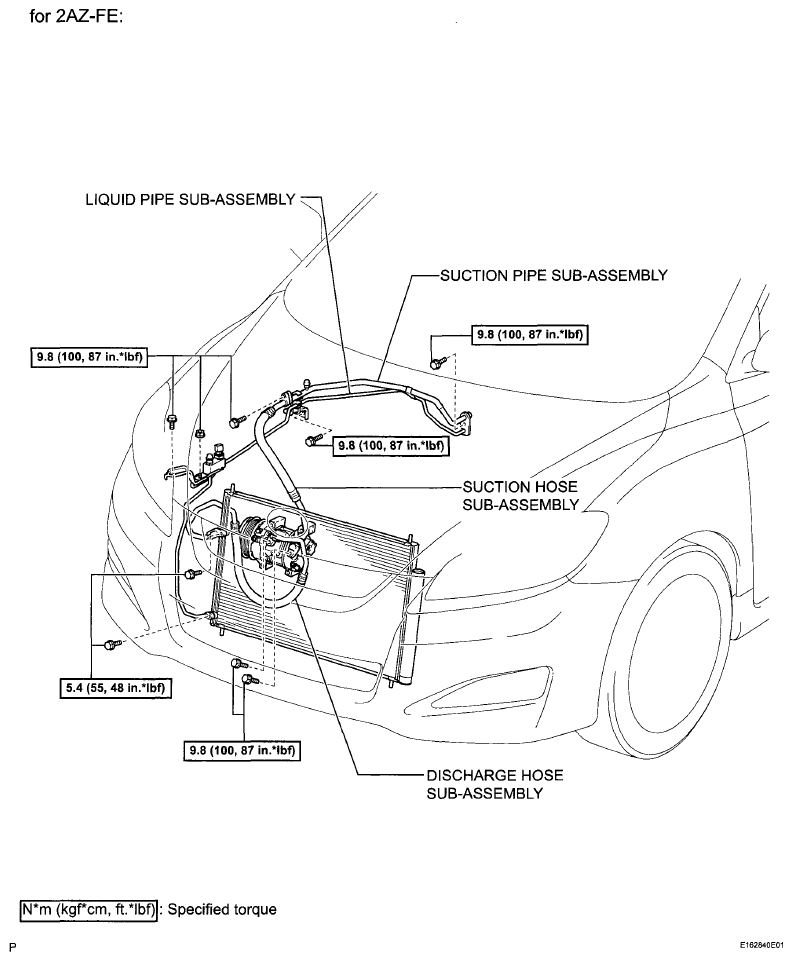

Fig 2: Refrigerant Line Replacement Components With Torque Specifications (2 Of 2)
G06037510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
