Blower Unit: Disassembly

  1. REMOVE AIR INLET CONTROL SERVO MOTOR
    1. Remove the 2 screws and the air inlet control servo motor.
    Fig 1: Identifying Air Inlet Control Servo Motor And Screws
    G06037611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR FILTER CASE
    1. Disengage the 2 claws and remove the air filter case as shown in the illustration.

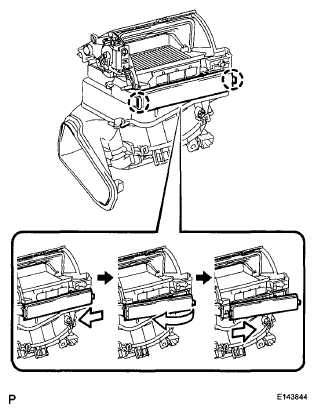

    Fig 2: Identifying Air Filter Case And Claws
    G06015450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CLEAN AIR FILTER
    1. Remove the clean air filter as shown in the illustration.
    Fig 3: Removing Clean Air Filter
    G06015451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BLOWER RESISTOR
    1. Remove the 2 screws and the blower resistor.
    Fig 4: Locating Blower Resistor Screws
    G06015452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BLOWER MOTOR SUB-ASSEMBLY
    1. Remove the 3 screws and the blower motor sub-assembly.
    Fig 5: Locating Blower Motor Sub-Assembly Screws
    G06015453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
