How To Determine Bolt Strength

Bolt Type

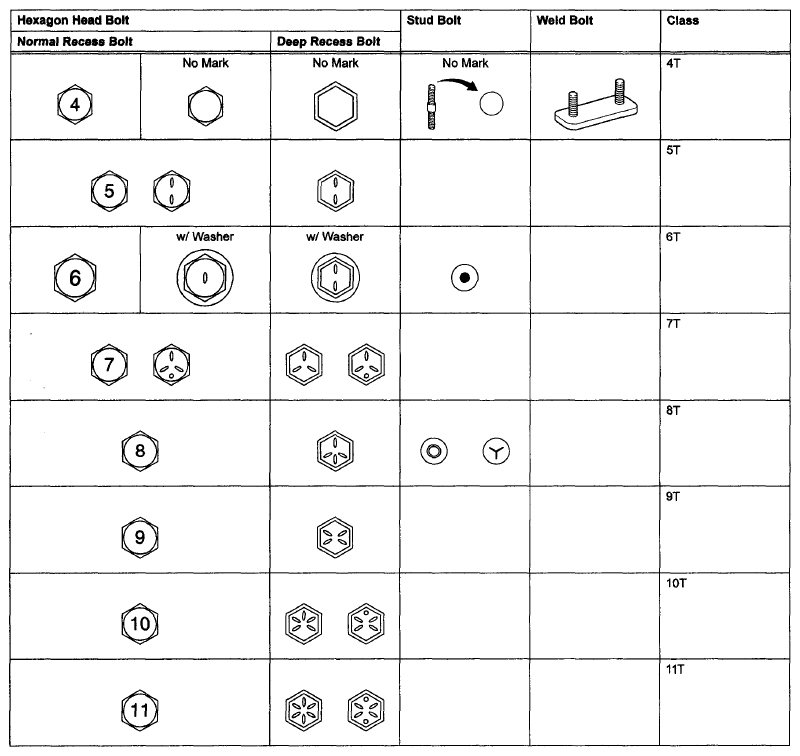

Fig 1: Bolt Classification Chart
G06039946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
