Section 9 (Starting System (2AZ-FE)): Starter: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL STARTER ASSEMBLY (for Manual Transaxle)
1. Install the starter assembly, clutch accumulator bracket, and wire harness clamp bracket with the 3 bolts.
  Torque: Bolt A

  37 N*m (377 kgf*cm, 27 ft.*lbf)

  Bolt B

  12 N*m (120 kgf*cm, 9 ft.*lbf)

  Fig 1: Locating Starter Assembly, Clutch Accumulator Bracket And Wire Harness Clamp Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the wire harness to terminal 30 with the nut. Then, attach the terminal cap.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
3. Connect the terminal 50 connector to the starter assembly.

  Fig 2: Locating Starter Assembly Wire Harness Nut And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STARTER ASSEMBLY (for Automatic Transaxle)
1. Install the starter assembly and wire harness clamp bracket with the 2 bolts.
  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

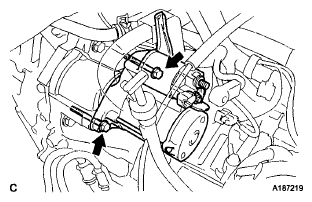

  Fig 3: Locating Wire Harness Clamp Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the wire harness to terminal 30 with the nut. Then, attach the terminal cap.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
3. Connect the terminal 50 connector to the starter assembly.
INSTALL BATTERY CARRIER
INSTALL BATTERY

Fig 4: Locating Starter Assembly Wire Harness Nut And Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WIRE HARNESS
1. Install the claw and wire harness.
INSTALL AIR CLEANER CASE (See INSTALLATION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE (See INSTALLATION )
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Fig 5: Identifying Wire Harness And Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
