VC Output Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

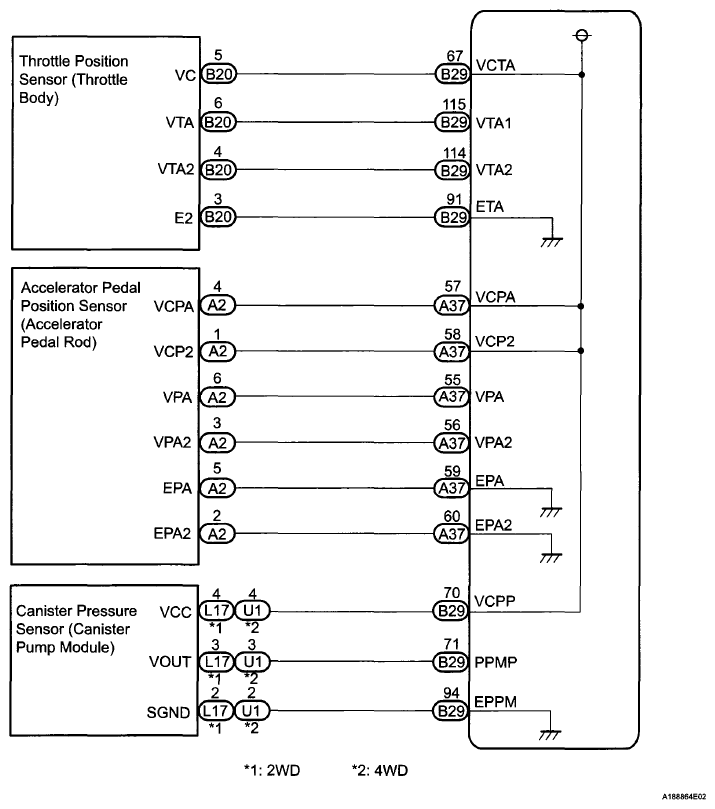

Fig 1: Throttle Position Sensor - Wiring Diagram
G06040247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
