Section 8 (Engine Control System (2AZ-FE))
>>
SFI System
>>
Parts Location
Parts Location
WARNING:
This page is about a different variant/trim than selected.

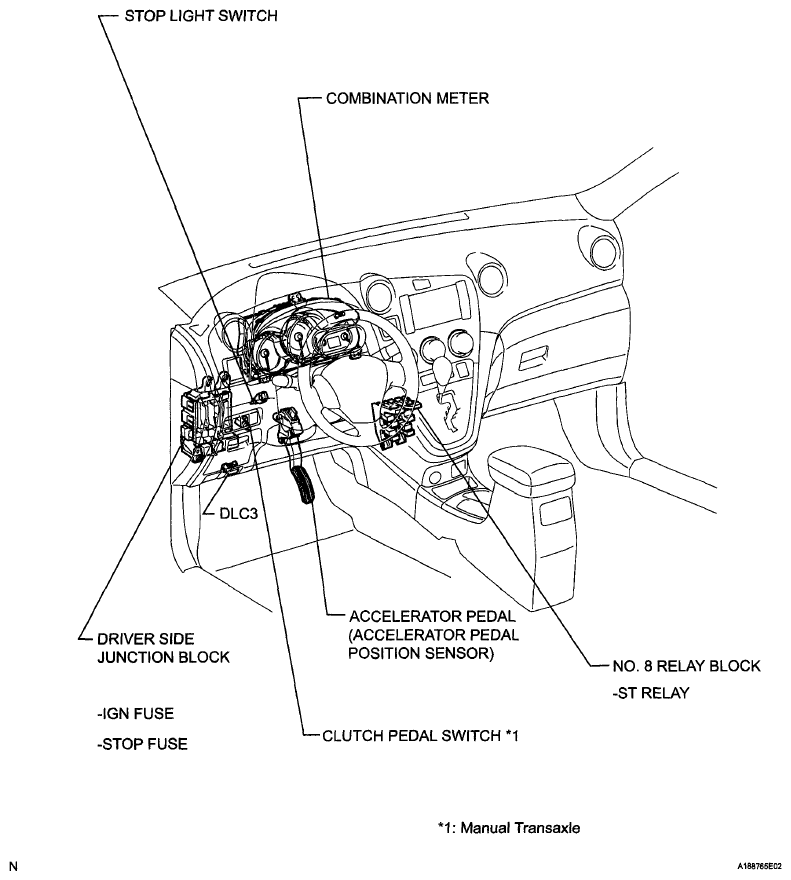

Fig 1: Identifying SFI System Parts Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

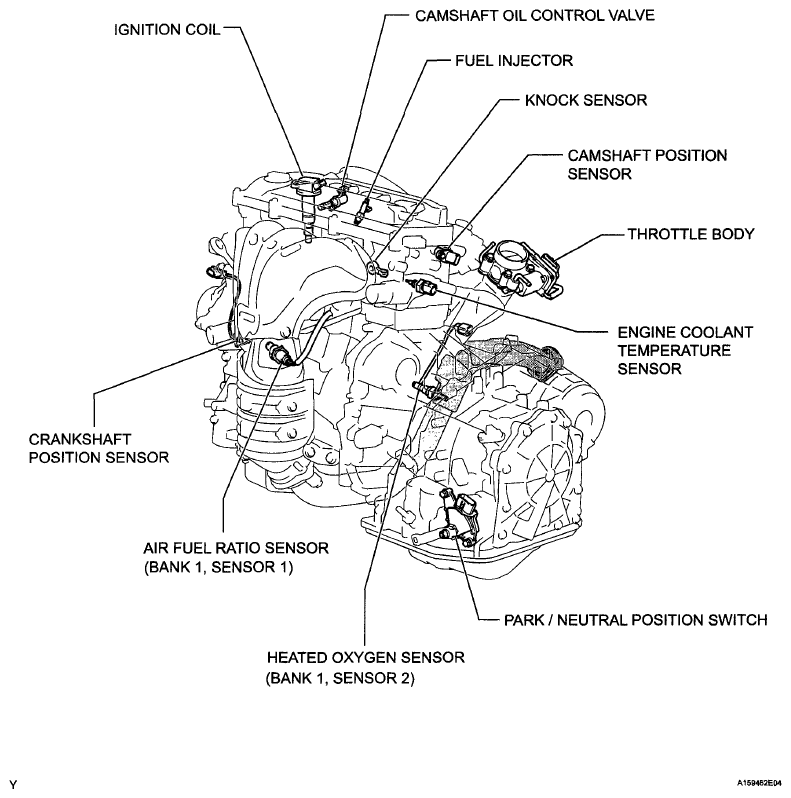

Fig 2: Identifying SFI System Parts Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

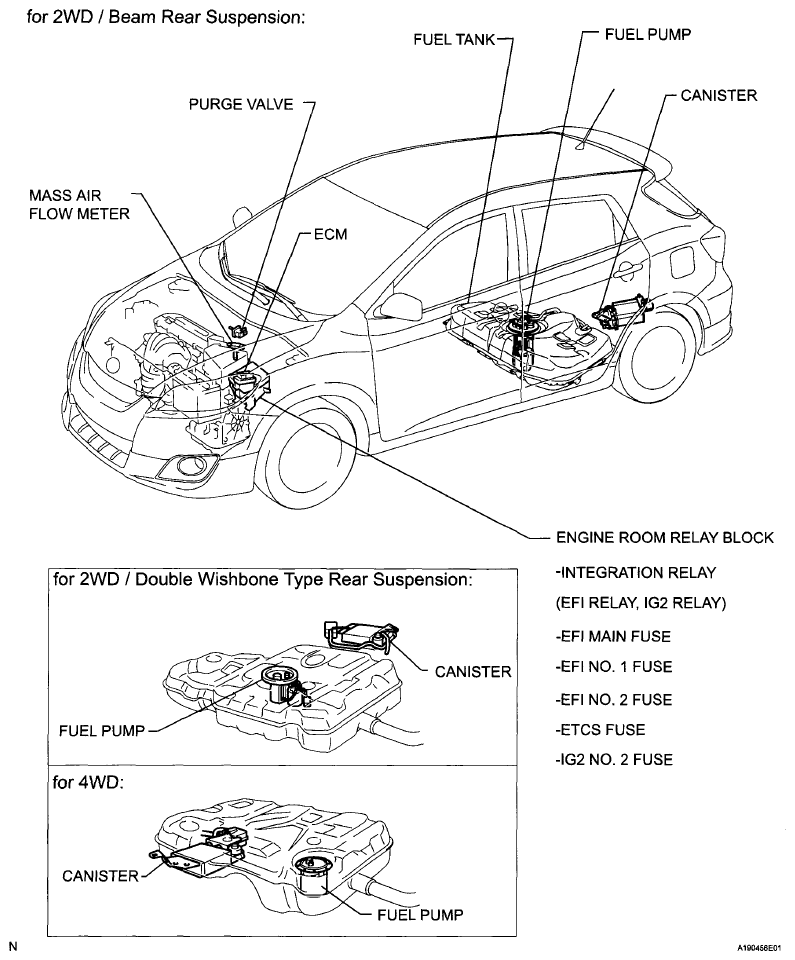

Fig 3: Identifying SFI System Parts Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
