DTC P0102 Mass or Volume Air Flow Circuit Low Input; DTC P0103 Mass or Volume Air Flow Circuit High Input: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

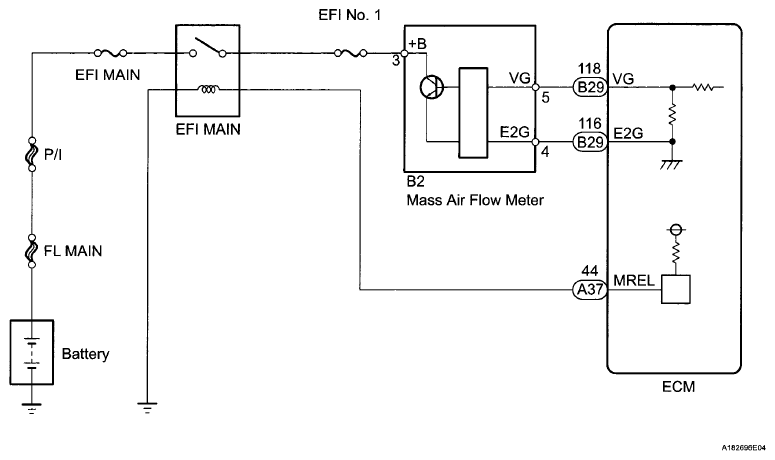

Fig 1: ECM And EFI Main - Wiring Diagram
G06039996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
