System Diagram

WARNING: This page is about a different variant/trim than selected.
Fig 1: Ignition System Diagram (1 Of 2)
G06040269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

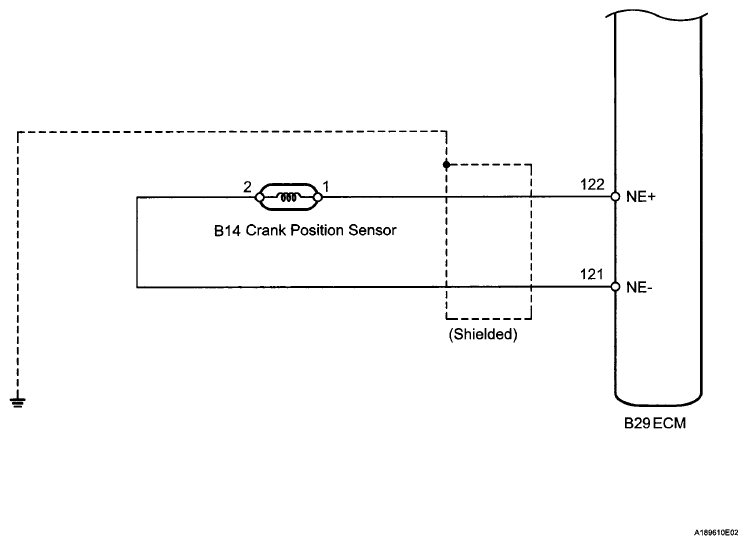

Fig 2: Ignition System Diagram (2 Of 2)
G06040270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
