Ignition Coil And Spark Plug: Components

WARNING: This page is about a different variant/trim than selected.

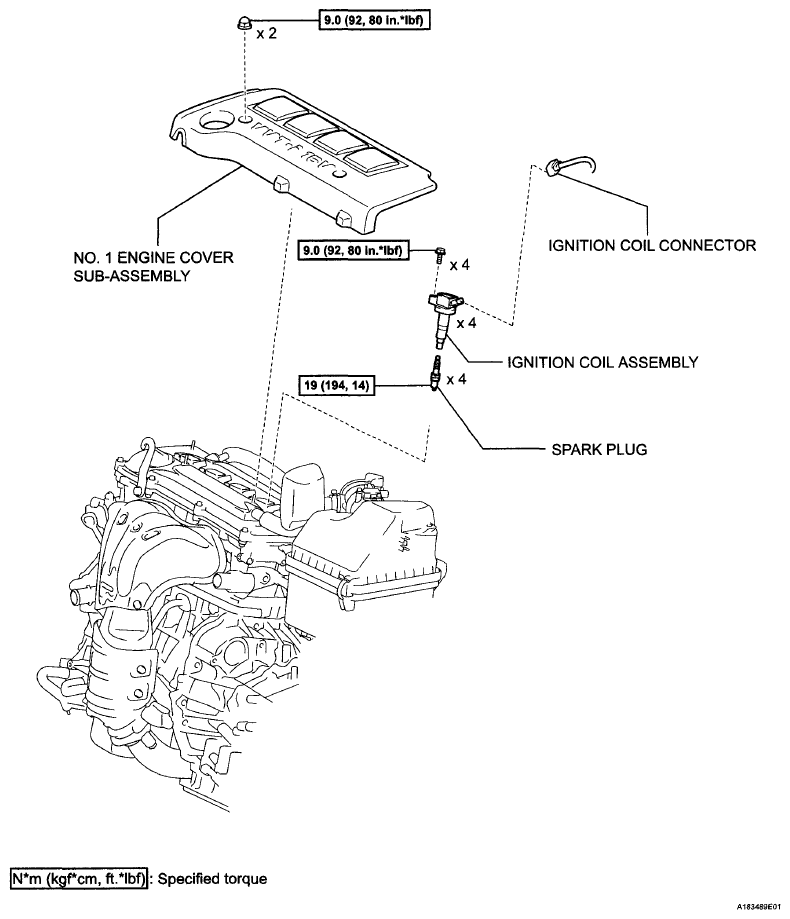

Fig 1: Identifying Ignition Coil And Spark Plug Components
G06040337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
