Transmission Wire: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT TRANSMISSION WIRE
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      1 (THO) - 7 (E2) 10°C (50°F) 5 to 8 kΩ
      1 (THO) - 7 (E2) 25°C (77°F) 2.5 to 4.5 kΩ
      1 (THO) - 7 (E2) 110°C (230°F) 0.22 to 0.28 kΩ

      HINT:

      If the resistance is out of the specified range with the ATF temperature shown in the table above, the driveability of the vehicle may decrease.

      If the resistance value is not as specified, replace the transmission wire.

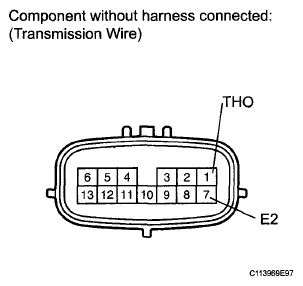

      Fig 1: Identifying Terminal THO And E2 Of Transmission Wire Connector
      G06043787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
