Differential Case: Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT FRONT DIFFERENTIAL PINION THRUST WASHER
1. Using a micrometer, measure the thickness of the front differential pinion thrust washer.
  Minimum thickness: 0.9 mm (0.0354 in.)

  If the thickness is less than the minimum, replace the front differential pinion thrust washer.

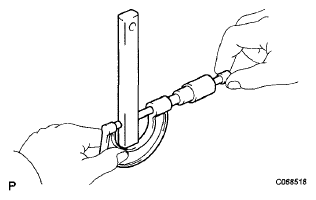

  Fig 1: Measuring Thickness Of Front Differential Pinion Thrust Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FRONT NO. 1 DIFFERENTIAL PINION SHAFT
1. Using a micrometer, measure the outside diameter of the front No. 1 differential pinion shaft.
  Minimum diameter:

  17.975 mm (0.708 in.)

  If the outer diameter is less than the minimum, replace the front No. 1 differential pinion shaft.

  Fig 2: Measuring Outside Diameter Of Front No. 1 Differential Pinion Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
