Section 65 (Lighting System (Service Information))
>>
Rear Combination Light Assembly
>>
Components
>>
Illustration
Rear Combination Light Assembly: Components: Illustration
WARNING:
This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

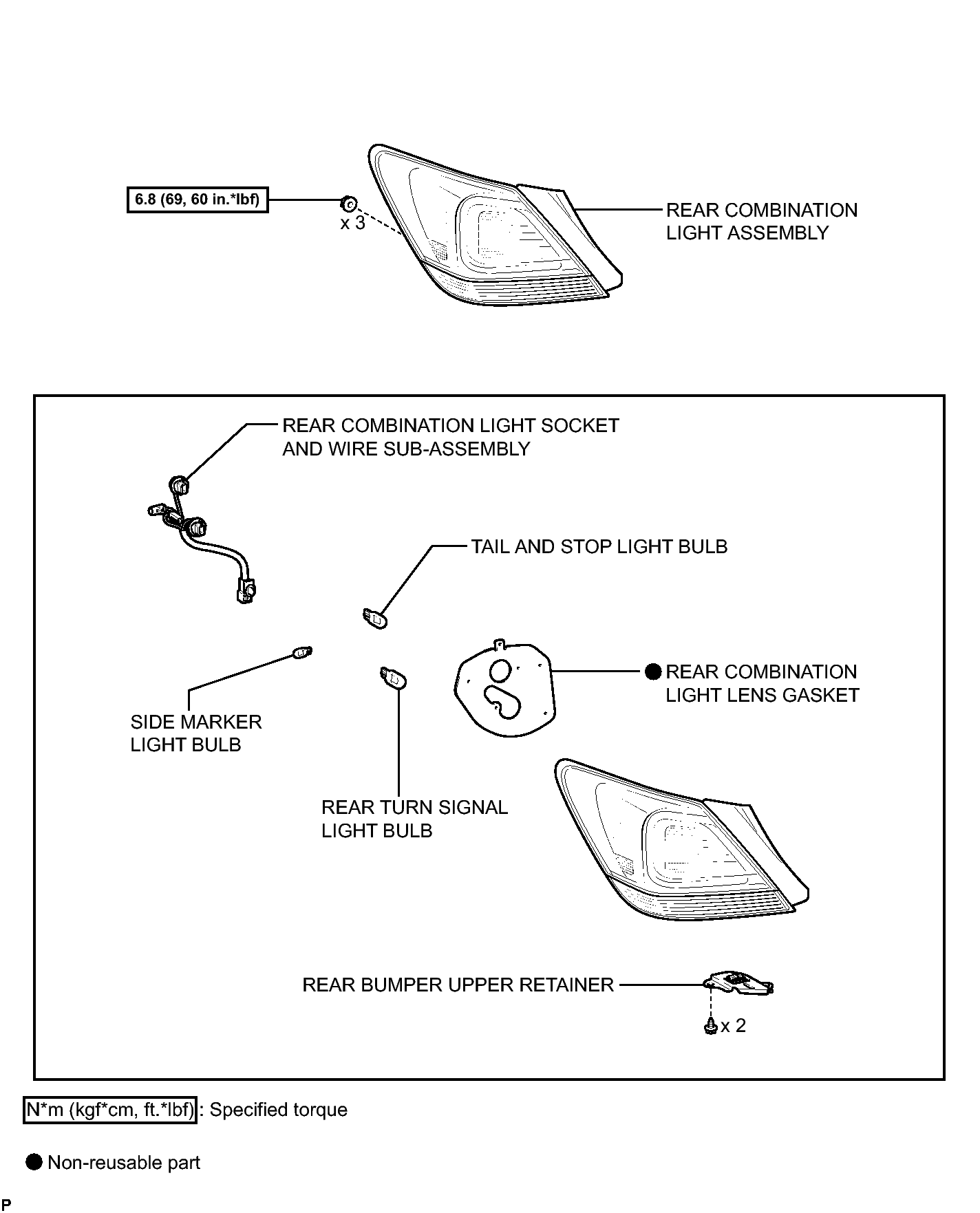

Fig 1: Identifying Rear Combination Light Assembly Replacement Components (1 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

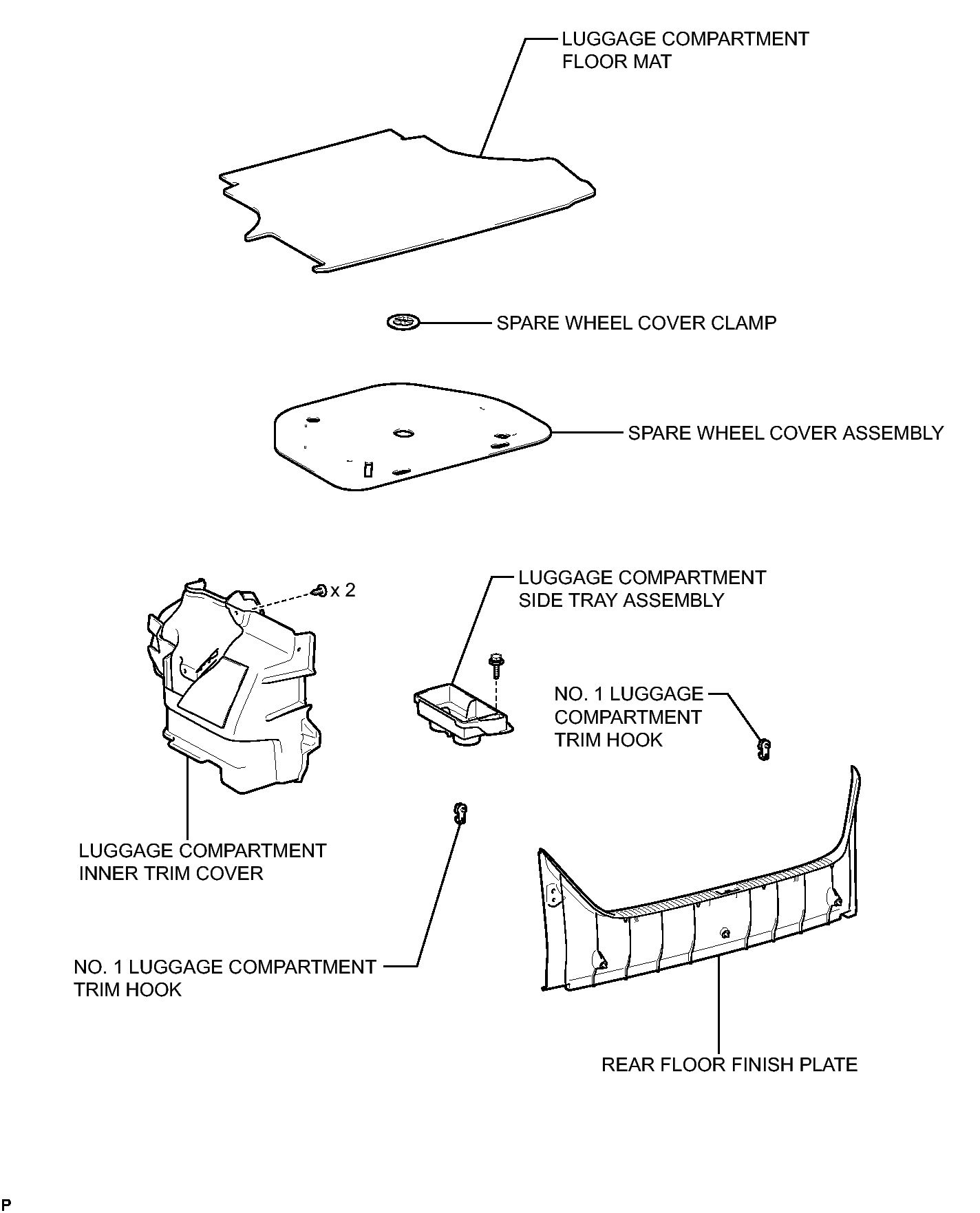

Fig 1: Identifying Rear Combination Light Assembly Replacement Components (2 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

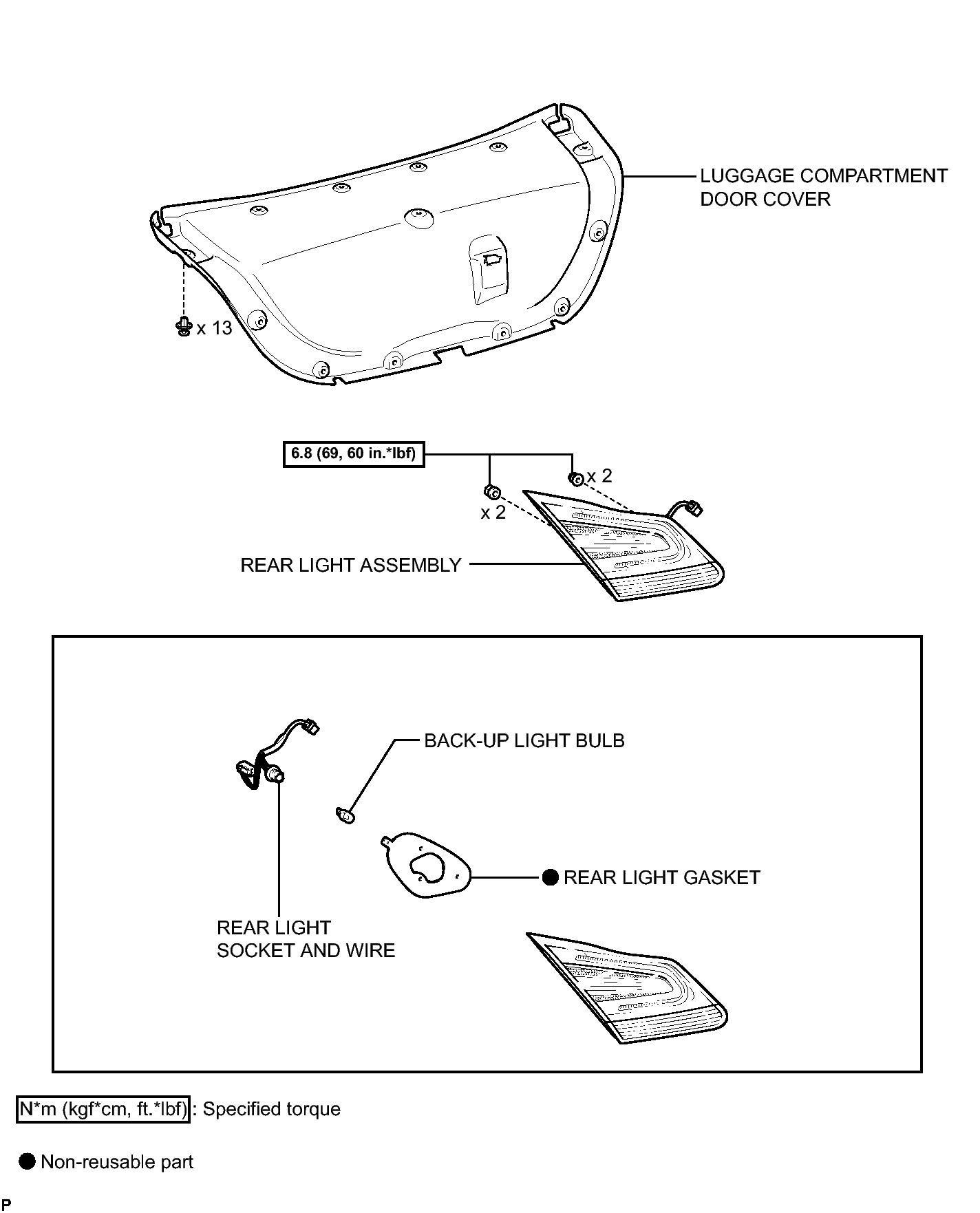

Fig 1: Identifying Rear Combination Light Assembly Replacement Components With Torque Specifications (3 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

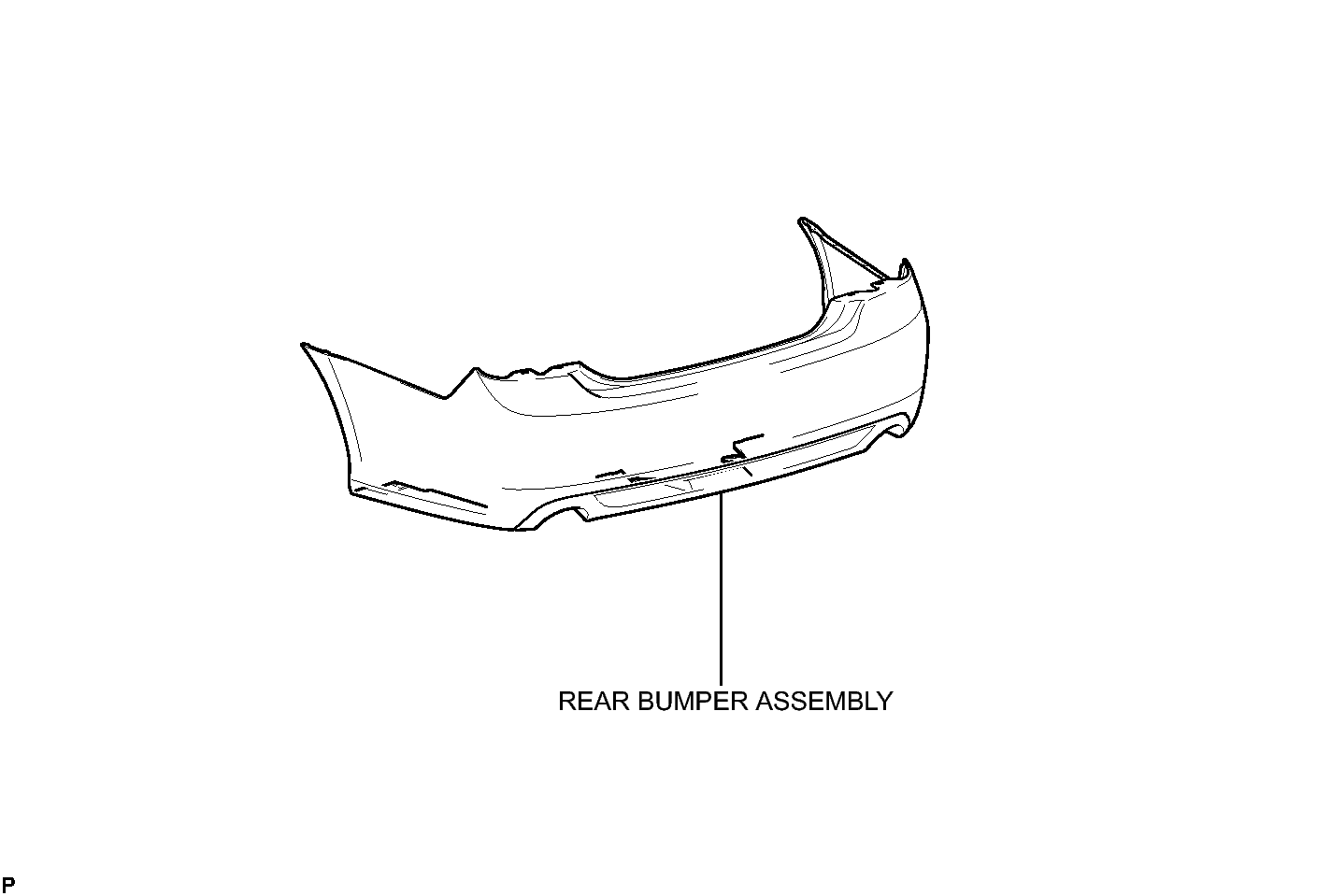

Fig 1: Identifying Rear Combination Light Assembly Replacement Components With Torque Specifications (4 of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
