Rear Seat Assembly: Disassembly: Disassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY LH
    1. Remove the 2 screws and the reclining release handle sub-assembly LH.

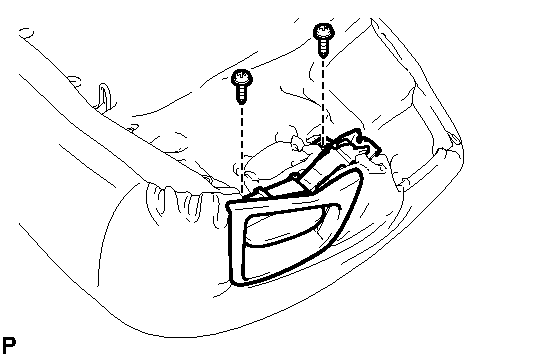

      Fig 1: Locating Reclining Release Handle Sub-Assembly RH Screws
      GTY196622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and LH side.

  3. REMOVE BENCH TYPE REAR SEAT CUSHION COVER
    1. Remove the 47 hog rings.

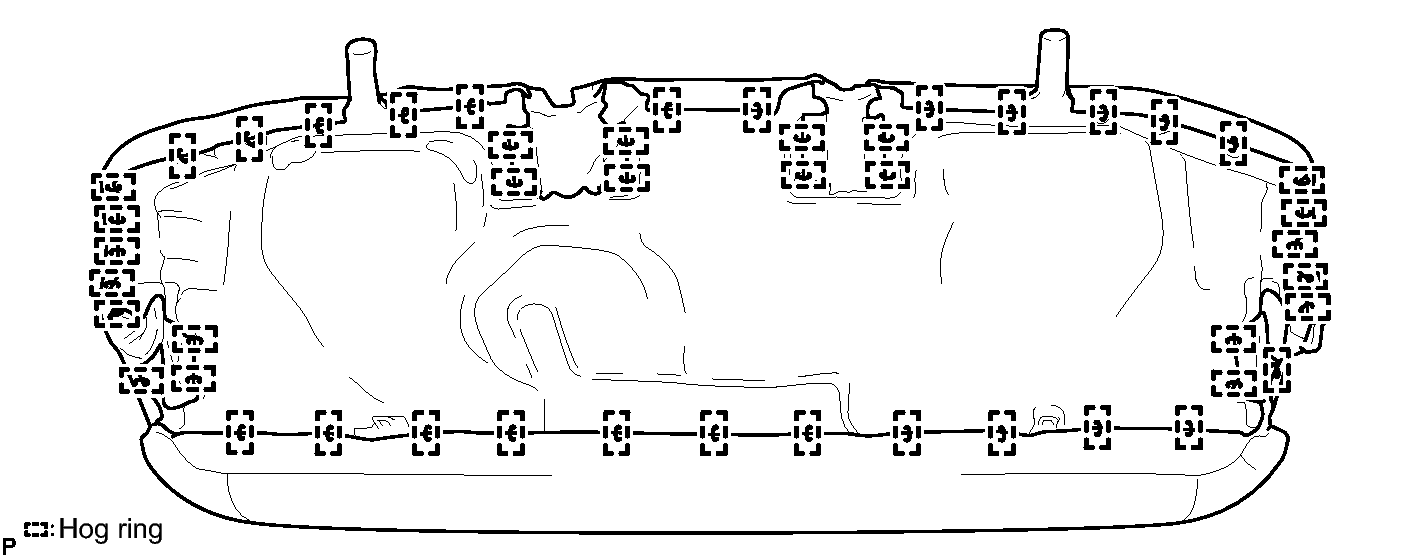

      Fig 2: Locating Bench Type Rear Seat Cushion Cover Hog Rings
      GTY196623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 18 hog rings and the bench type rear seat cushion cover.

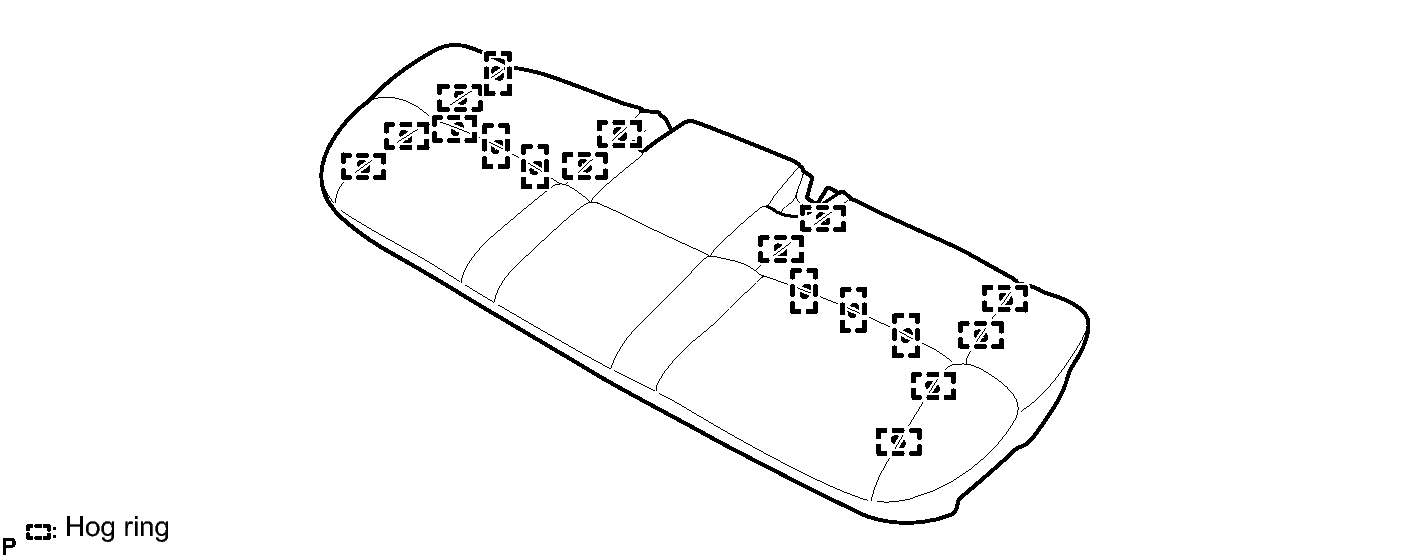

      Fig 3: Locating Bench Type Rear Seat Cushion Cover Rings
      GTY183379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BRACKET
    1. Remove the 3 bolts, E-ring and the rear seat center armrest bracket LH.

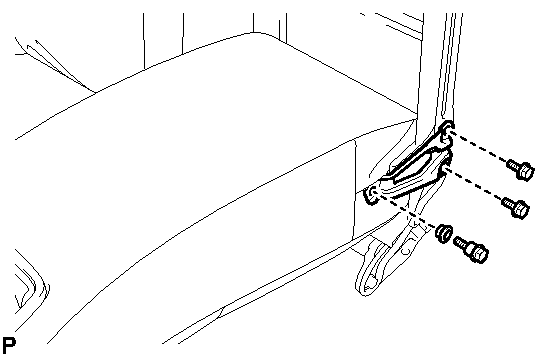

      Fig 4: Locating E-Ring And Rear Seat Center Armrest Bracket LH Bolts
      GTY196624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT ARMREST ASSEMBLY CENTER
    1. Remove the rear seat armrest assembly center.

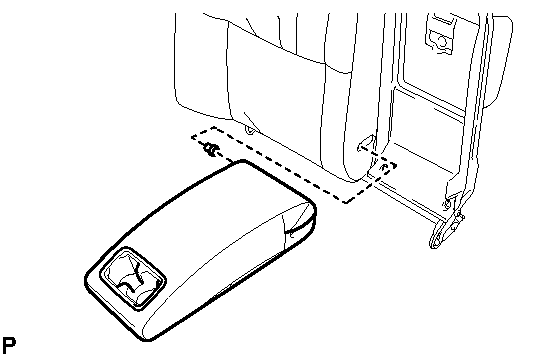

      Fig 5: Removing Rear Seat Armrest Assembly Center
      GTY196626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SEAT ARMREST HANDLE
    1. Open the rear seat center armrest door sub-assembly as shown in the illustration.

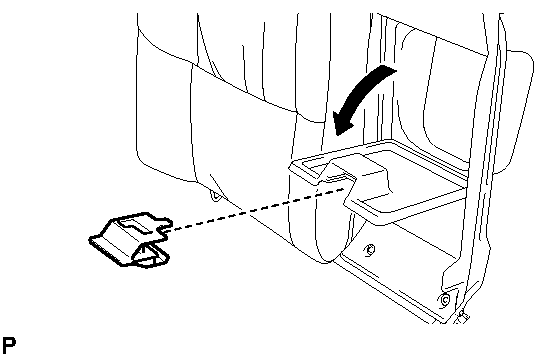

      Fig 6: Removing Rear Seat Armrest Handle
      GTY170959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the ring and remove the rear seat armrest handle and spring as a unit.
    3. Remove the rear seat armrest handle.

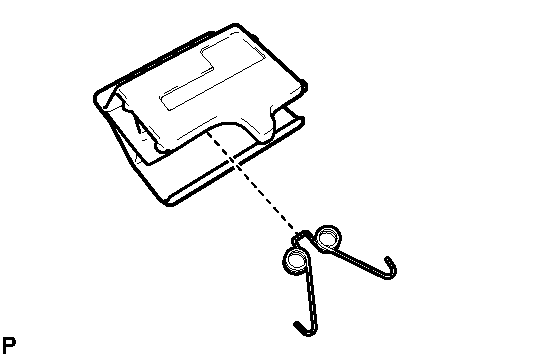

      Fig 7: Removing Rear Seat Armrest Handle
      GTY196627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SEAT CENTER ARMREST DOOR SUB-ASSEMBLY
    1. Disengage the RH side pin.

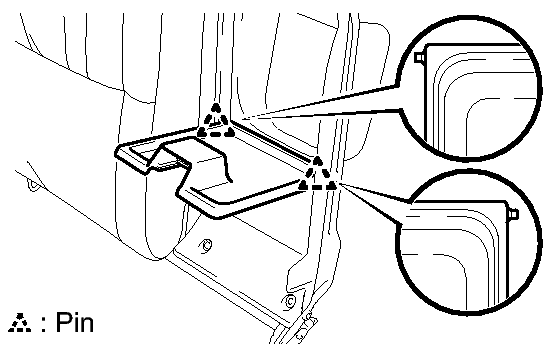

      Fig 8: Locating Rear Seat Center Armrest Door Sub-Assembly Side Pins
      GTY176421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the LH side pin and remove the rear seat center armrest door sub-assembly.
  8. REMOVE REAR SEAT HEADREST SUPPORT
    1. Disengage the 6 claws and remove the 3 rear seat headrest supports (LH side).

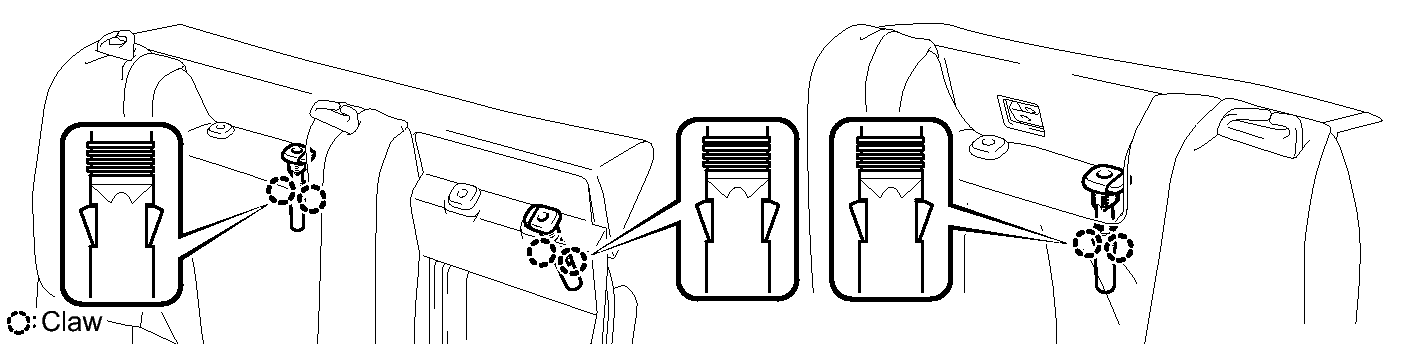

      Fig 9: Locating Rear Seat Headrest Supports (LH Side) Claws
      GTY189474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT HEADREST SUPPORT

    HINT:

    Use the same procedures for the RH side and LH side.

  10. REMOVE REAR SEAT CENTER ARMREST BOX
    1. Remove the 2 screws.

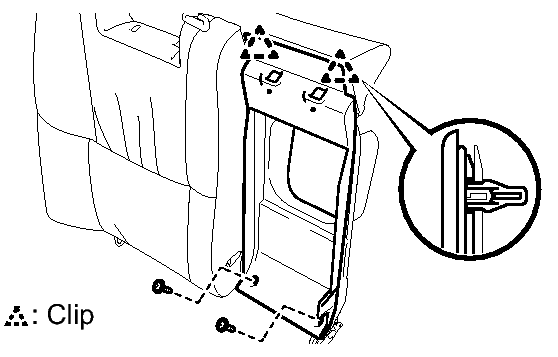

      Fig 10: Locating Rear Seat Center Armrest Box Fasteners
      GTY196628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips and remove the rear seat center armrest box.
  11. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
    1. Remove the 2 screws and the rear seat shoulder belt guide LH.

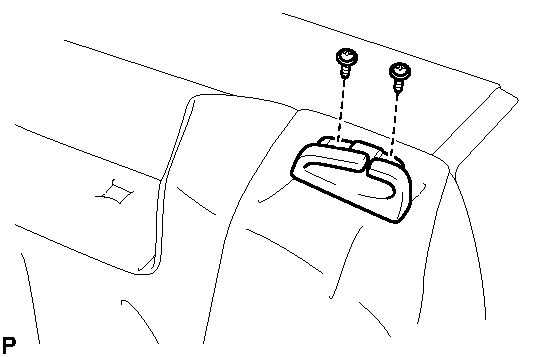

      Fig 11: Locating Rear Seat Shoulder Belt Guide LH Screws
      GTY196629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

    HINT:

    Use the same procedures for the RH side and LH side.

  13. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER
    1. Remove the 2 screws and the rear seat shoulder belt guide center.

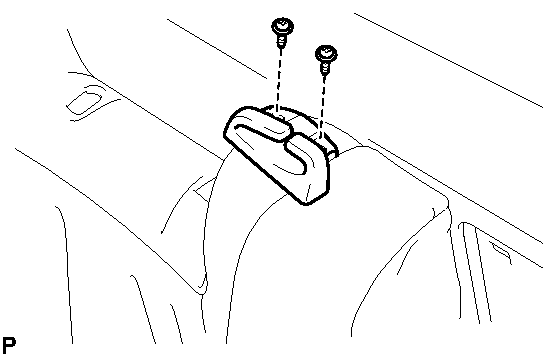

      Fig 12: Locating Rear Seat Shoulder Belt Guide Center Screws
      GTY170955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR SEATBACK COVER LH
    1. Remove the 2 screws.

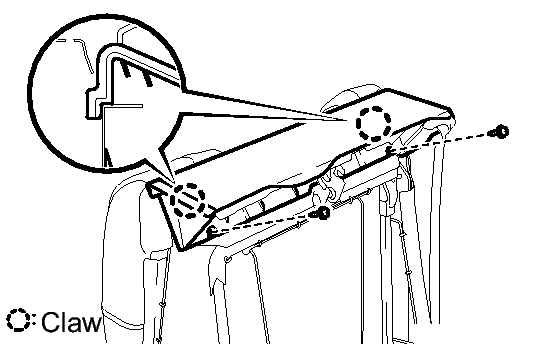

      Fig 13: Removing Rear Seatback Cover LH
      GTY196630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the rear seatback cover LH.
  15. REMOVE REAR SEATBACK COVER RH
    1. Remove the 3 screws.

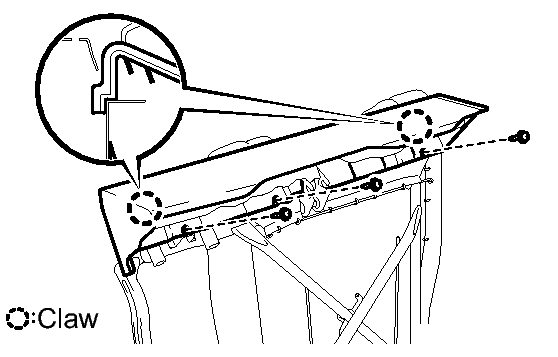

      Fig 14: Removing Rear Seatback Cover RH
      GTY196631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the rear seatback cover RH.
  16. REMOVE RR SEAT BELT HOOK
    1. Remove the 5 hog rings and the RR seat belt hook.

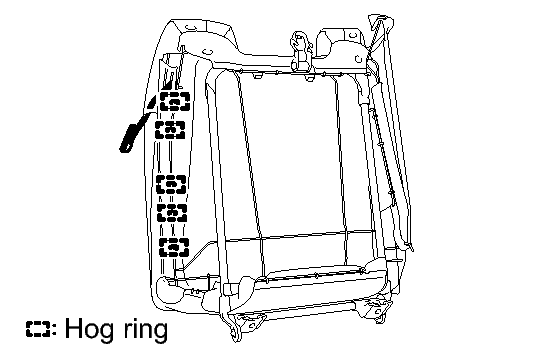

      Fig 15: Locating RR Seat Belt Hook Hog Rings
      GTY196632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedures for the RH side and LH side.

  17. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH
    1. Disengage the 2 J-clips.

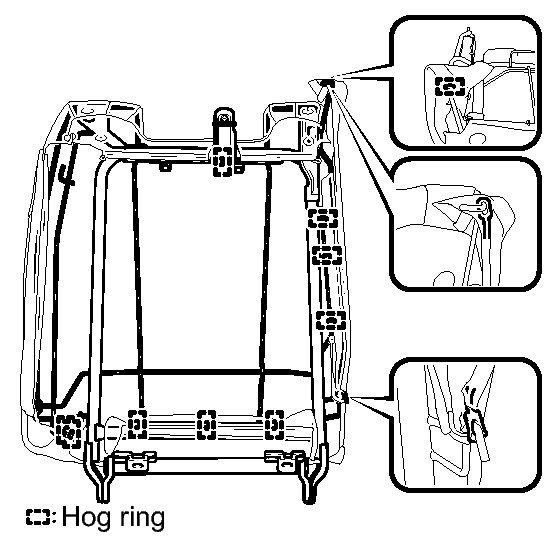

      Fig 16: Locating Rear Seatback Frame Sub-Assembly LH Hog Rings
      GTY179248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 10 hog rings.
    3. Disengage the 2 hooks and remove the rear seatback frame sub-assembly LH.
  18. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH
    1. Disengage the 2 J-clips.

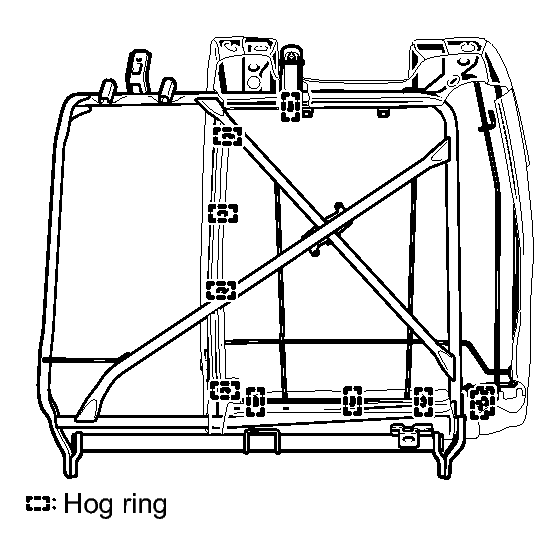

      Fig 17: Locating Rear Seatback Frame Sub-Assembly RH Hog Rings
      GTY196633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 10 hog rings and the rear seatback frame sub-assembly RH.
  19. REMOVE SEPARATE TYPE REAR SEATBACK COVER
    1. Remove the 11 hog rings and the separate type rear seatback cover.

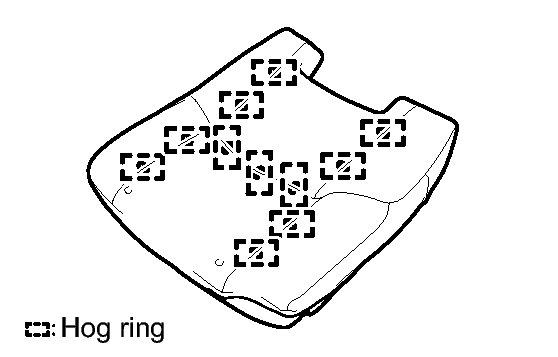

      Fig 18: Locating Separate Type Rear Seatback Cover Hog Rings
      GTY169271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SEPARATE TYPE REAR SEATBACK COVER

    HINT:

    Use the same procedures for the RH side and LH side.

  21. REMOVE UPPER NO. 2 LH ARM SUB-ASSEMBLY NO. 1 SEAT RECLINING ADJUSTER
    1. Disengage the clamp and remove the 2 nuts and the reclining adjuster arm sub-assembly LH.

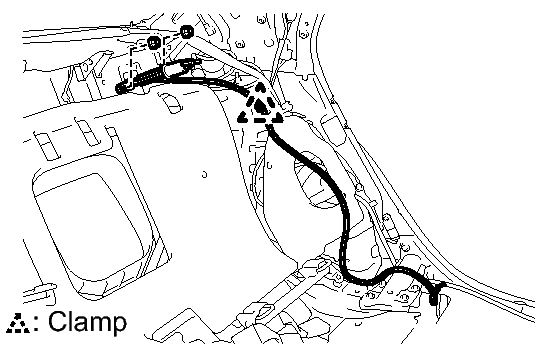

      Fig 19: Removing Reclining Adjuster Arm Sub-Assembly LH Fasteners
      GTY196634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 1 SEAT RECLINING ADJUSTER ARM SUB-ASSEMBLY UPPER NO. 2 RH

    HINT:

    Use the same procedures for the RH side and LH side.
