Installation (From 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STABILIZER BAR FRONT
1. Install the stabilizer bar front to the vehicle.
INSTALL FRONT STABILIZER BAR BUSH NO. 1
HINT:
- Install the bushes as to the outer side of each bush stopper on the stabilizer bar.
- Place the cutout of the stabilizer bushes as facing the rear side as shown in the illustration.

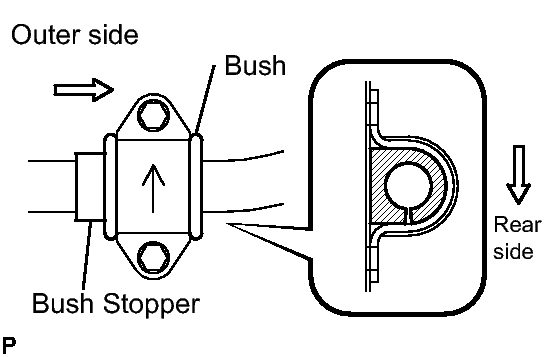

Fig 1: Identifying Front Stabilizer Bar Bush No. 1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER BRACKET NO. 1 LH
1. Install the front stabilizer bracket No. 1 LH with the 2 bolts.
  Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

  Fig 2: Locating Stabilizer Bracket No. 1 LH Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER BRACKET NO. 1 RH
HINT:

Install the RH side following the same procedures as with the LH side.
INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
1. Install the engine assembly with transaxle. Refer to INSTALLATION .
INSTALL FRONT STABILIZER LINK ASSEMBLY LH
1. Install the front stabilizer link assembly LH with the 2 nuts.
  Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

  HINT:

  Use a hexagon (6 mm) wrench to hold the stud if the ball joint turns together with the nut.

  Fig 3: Locating Front Stabilizer Link Assembly LH With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT:

Install the RH side following the same procedures as with the LH side.
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
BLEED POWER STEERING FLUID
1. Bleed the power steering fluid. Refer to ON-VEHICLE INSPECTION .
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
1. Inspect and adjust the front wheel alignment. Refer to ADJUSTMENT .
