Timing Gear: Installation
- INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
- Raise the chain.
- Hold the hexagonal portion of the intake camshaft with a wrench and turn it slightly counterclockwise to release the chain.
- Align the paint mark with the matchmark to install the chain.NOTE: Do not turn the intake camshaft more than necessary.
- Align the straight pin on the No. 2 camshaft with the pin hole in the camshaft timing exhaust gear assembly and install the camshaft timing exhaust gear assembly to the No. 2 camshaft.NOTE:
- If the straight pin cannot be aligned with the pin hole, hold the hexagonal portion of the No. 2 camshaft with a wrench and turn it slightly to install the gear.
- Do not turn the No. 2 camshaft more than necessary.
- Do not forcibly push on the tip of the straight pin with the camshaft timing exhaust gear assembly.

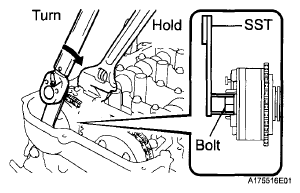

- Using SST and a wrench, hold the hexagonal portion of the No. 2 camshaft and install the camshaft timing exhaust gear assembly to the No. 2 camshaft.
SST 09249-37010
Torque: without SST
54 N*m (551 kgf*cm, 40 ft.*lbf)
with SST
39 N*m (397 kgf*cm, 29 ft.*lbf)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:- This torque value can be obtained by using a torque wrench with a fulcrum length of 260 mm (10.24 in.) and SST of 100 mm (3.94 in.) (See REPAIR INSTRUCTION ).
- This torque value is effective when SST is parallel to the torque wrench.
- INSTALL NO. 2 CHAIN VIBRATION DAMPER

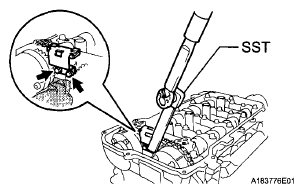

- Using SST, install the No. 2 chain vibration damper with the 2 bolts.
SST 09961-00950
Torque: without SST
10 N*m (102 kgf*cm, 7 ft.*lbf)
with SST
5.5 N*m (56 kgf*cm, 48 in.*lbf)
NOTE:- This torque value can be obtained by using a torque wrench with a fulcrum length of 180 mm (7.09 in.) and SST of 150 mm (5.91 in.) (See REPAIR INSTRUCTION ).
- This torque value is effective when SST is parallel to the torque wrench.
- Using SST, install the No. 2 chain vibration damper with the 2 bolts.
- INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY (See REASSEMBLY )
- SET NO. 1 CYLINDER TO TDC/COMPRESSION

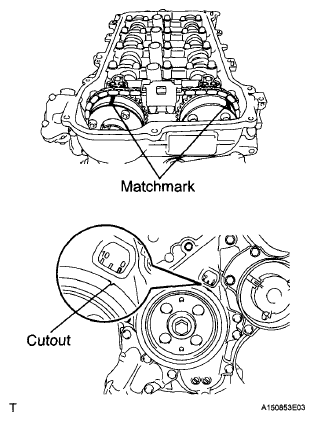

- Turn the crankshaft clockwise 360° to set the No. 1 cylinder to TDC/compression and align the matchmark (cutout) with the "0" mark on the timing chain (belt) cover.
- Check that the matchmark on each camshaft timing gear is positioned as shown in the illustration.
- INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY (See REASSEMBLY )
- INSTALL IGNITION COIL ASSEMBLY (See INSTALLATION )
- INSTALL RADIO SETTING CONDENSER (See INSTALLATION )
- INSTALL WIRE HARNESS

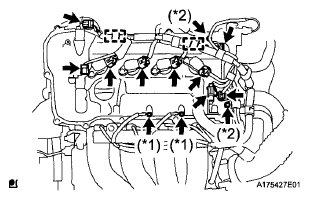

- Install the air tube with the 2 bolts (*2).
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Connect the 9 connectors and install the wire harness with the 2 bolts (*1) and 2 clamps.
Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)
- Install the air tube with the 2 bolts (*2).
- INSTALL NO. 2 VENTILATION HOSE
- CONNECT FUEL VAPOR FEED HOSE ASSEMBLY (See INSTALLATION )
- CONNECT UNION TO CONNECTOR TUBE HOSE (See INSTALLATION )
- INSTALL NO. 2 CYLINDER HEAD COVER (See INSTALLATION )
