Water Pump: Components

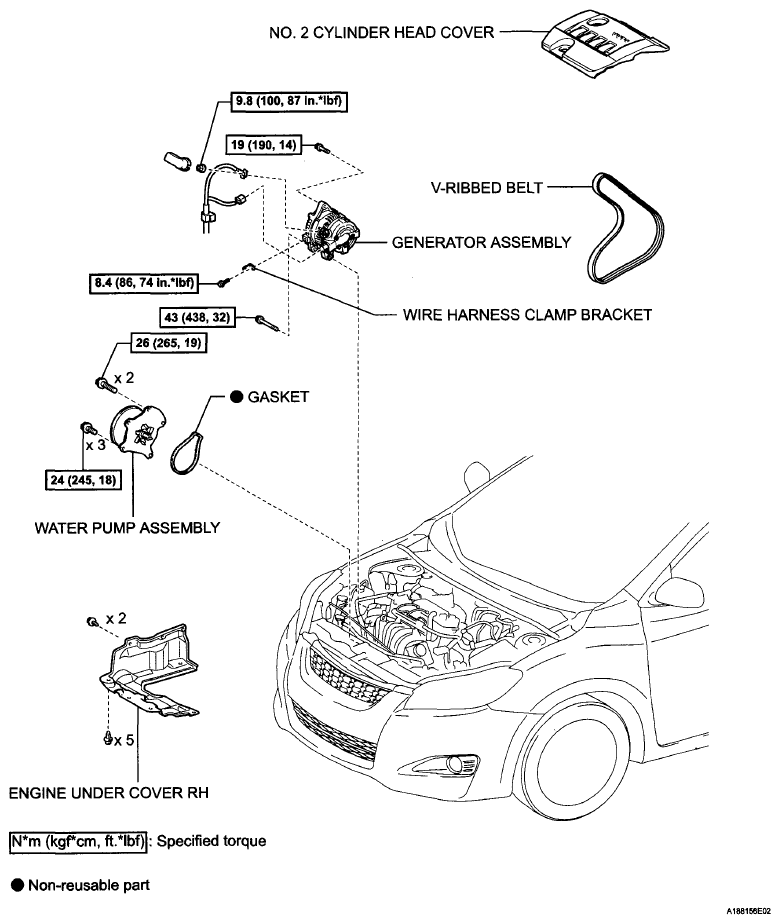

Fig 1: Water Pump Replacement Components With Torque Specifications

G06042725

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
