Parts Location

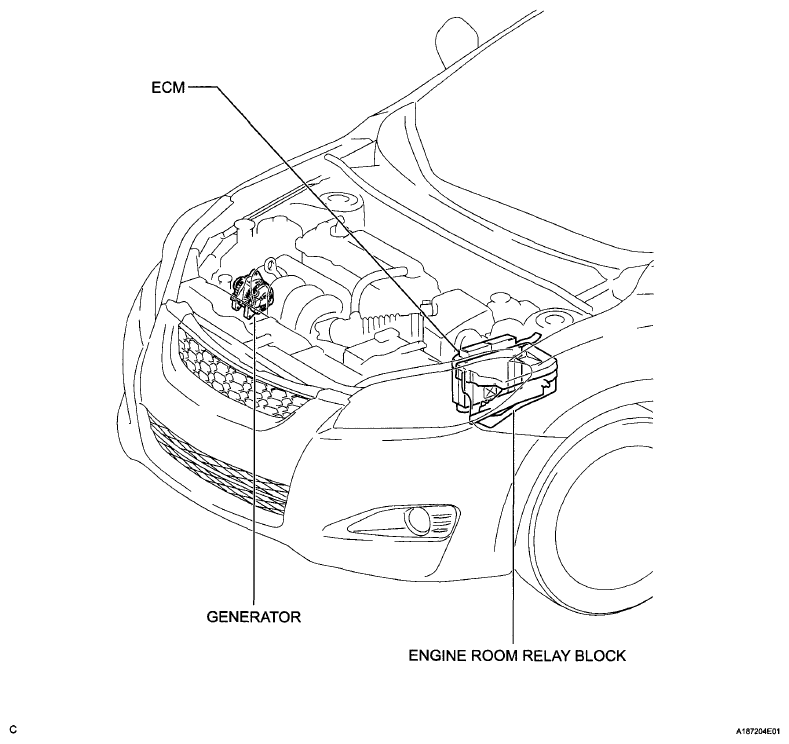

Fig 1: Identifying Charging System Parts Location (1 Of 2)
G06036059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

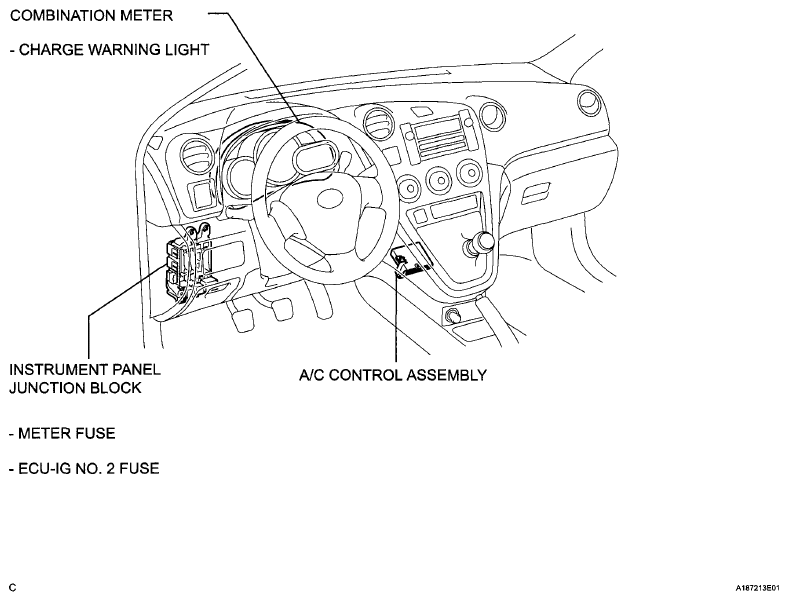

Fig 2: Identifying Charging System Parts Location (2 Of 2)
G06036060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
