Skid Control Buzzer Circuit: Wiring Diagram

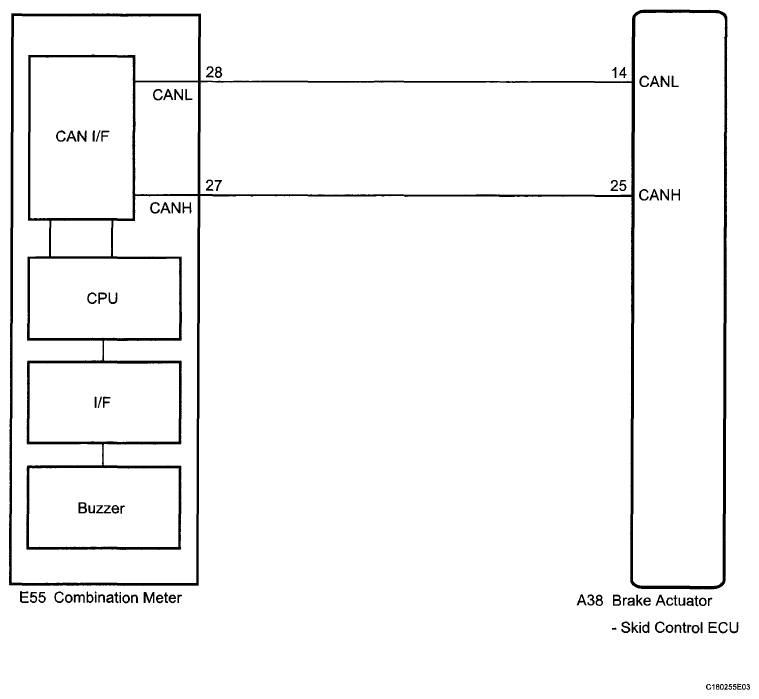

Fig 1: Skid Control Buzzer - Wiring Diagram

G06035054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
