Home >> Toyota >> 2009 >> Matrix Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Mirror (Exterior) >> Outer Rear View Mirror >> Components

Outer Rear View Mirror: Components

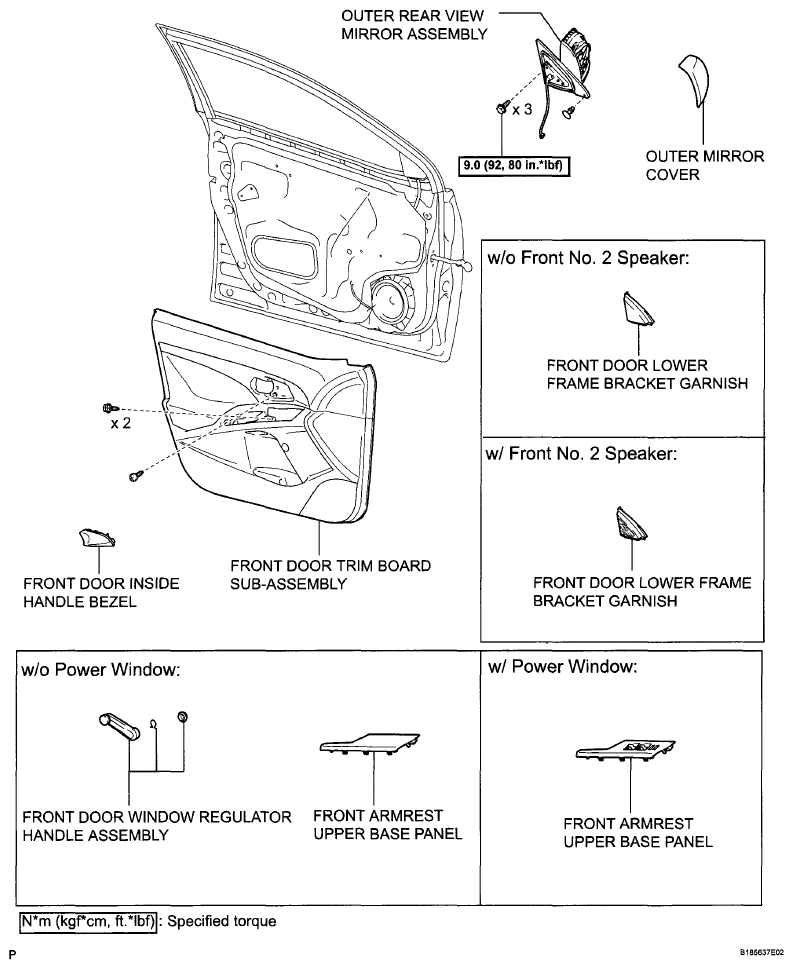

Fig 1: Identifying Outer Rear View Mirror Components

G06038533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
