Parts Location

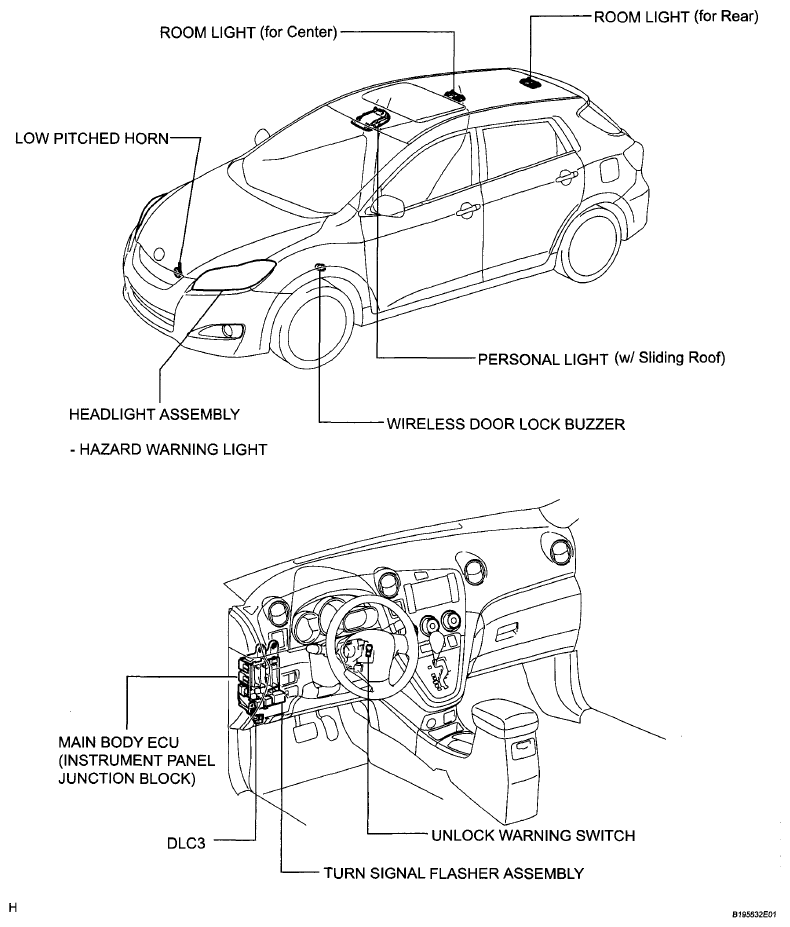

Fig 1: Identifying Wireless Door Lock Control System Parts Location (1 Of 3)
G06036331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

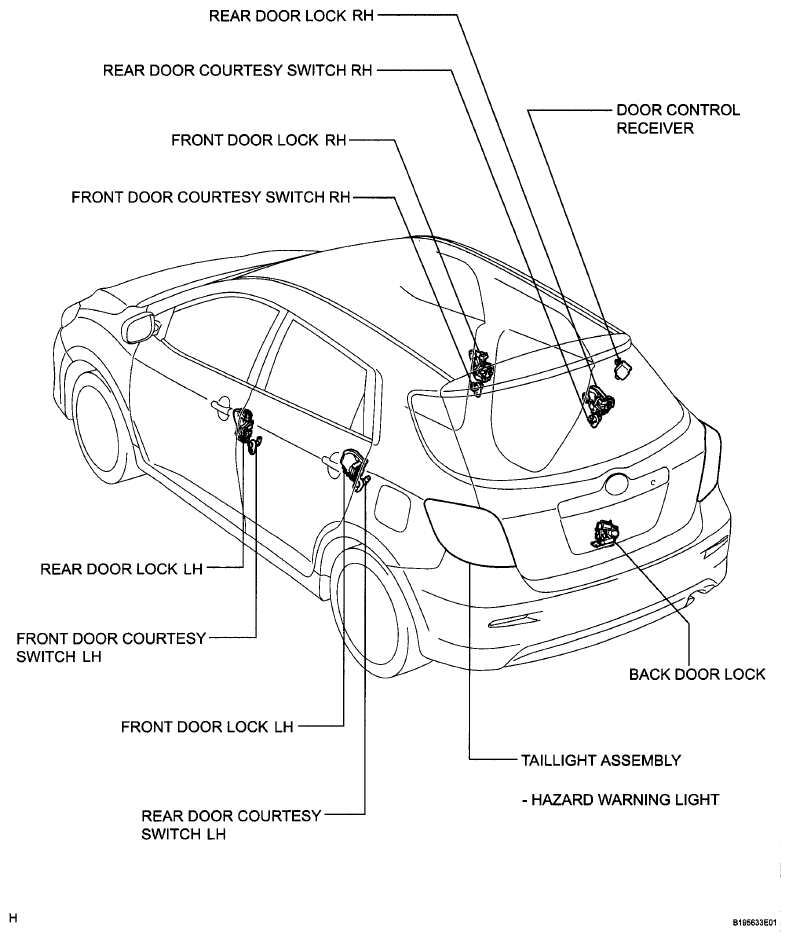

Fig 2: Identifying Wireless Door Lock Control System Parts Location (2 Of 3)
G06036332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Wireless Door Lock Control System Parts Location (3 Of 3)
G06036333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
