Rear Door Lock: Installation

INSTALL REAR DOOR INSIDE LOCKING CABLE ASSEMBLY (w/o Power Door Lock)
1. Install the rear door inside locking cable assembly.
Fig 1: Identifying Rear Door Lock Remote Control Cable Assembly (W/O Power Door Lock)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR INSIDE LOCKING CABLE ASSEMBLY (w/ Power Door Lock)
1. Install the rear door inside locking cable assembly.

  Fig 2: Identifying Rear Door Inside Locking Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 3 claws.
Fig 3: Identifying Rear Door Inside Locking Cable Assembly With Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY (w/o Power Door Lock)
1. Install the rear door lock remote control cable assembly.
Fig 4: Identifying Rear Door Lock Remote Control Cable Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY (w/ Power Door Lock)
1. Install the rear door lock remote control cable assembly.

  Fig 5: Identifying Rear Door Lock Remote Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw.
INSTALL REAR DOOR LOCK ASSEMBLY (w/o Power Door Lock)
1. Apply MP grease to the sliding parts of the rear door lock assembly.

  Fig 6: Identifying Rear Door Lock Remote Control Cable Assembly And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert the rear door lock assembly to the rear door outside handle release plate, and set it to the rear door panel.
3. Make sure that the rear door outside handle frame release plate is securely connected to the rear door lock assembly.
4. Using a "TORX" socket wrench (T30), install the rear door lock assembly with the 3 screws.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

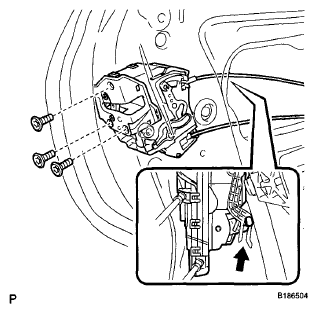

  Fig 7: Identifying Rear Door Lock Assembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR LOCK ASSEMBLY (w/ Power Door Lock)
NOTE:
- When reusing the removed rear door lock assembly, replace the door lock wiring harness seal on the connector with a new one.
- Do not allow grease or dust to adhere to the door lock wiring harness seal surface of the connector.
- Reusing the door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water intrusion to the connection. This may result in a malfunction of the rear door lock assembly.
1. Apply MP grease to the sliding parts of the rear door lock assembly.
2. Install a new door lock wiring harness seal to the rear door lock assembly.
3. Insert the rear door lock assembly to the rear door outside handle release plate, and set it to the rear door panel.
4. Make sure that the rear door outside handle frame release plate is securely connected to the rear door lock assembly.
5. Using a "TORX" socket wrench (T30), install the rear door lock assembly with the 3 screws.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

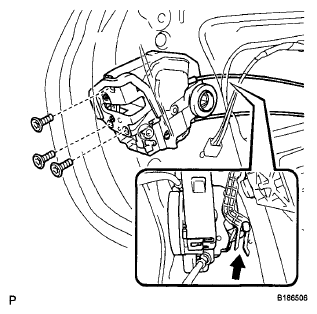

  Fig 8: Identifying Rear Door Lock Assembly With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the connector.
INSTALL REAR DOOR GLASS RUN (See REASSEMBLY )
INSTALL REAR DOOR GLASS SUB-ASSEMBLY (See REASSEMBLY )
INSTALL REAR DOOR REAR GUIDE SEAL (See REASSEMBLY )
INSTALL REAR DOOR REAR WINDOW GUIDE SUB-ASSEMBLY (See REASSEMBLY )
INSTALL REAR DOOR SERVICE HOLE COVER (w/o Power Door Lock) (See REASSEMBLY )
INSTALL REAR DOOR SERVICE HOLE COVER (w/ Power Door Lock) (See REASSEMBLY )
INSTALL REAR DOOR INNER GLASS WEATHERSTRIP (See REASSEMBLY )
INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY (See REASSEMBLY )
INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY (See REASSEMBLY )
INSTALL REAR DOOR ARMREST UPPER BASE PANEL (w/o Power Window) (See REASSEMBLY )
INSTALL REAR DOOR ARMREST UPPER BASE PANEL (w/ Power Window) (See REASSEMBLY )
INSTALL REAR DOOR INSIDE HANDLE BEZEL (See REASSEMBLY )
INSTALL REAR DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window) (See REASSEMBLY )
