Key Reminder Warning System
>>
Parts Location
Parts Location

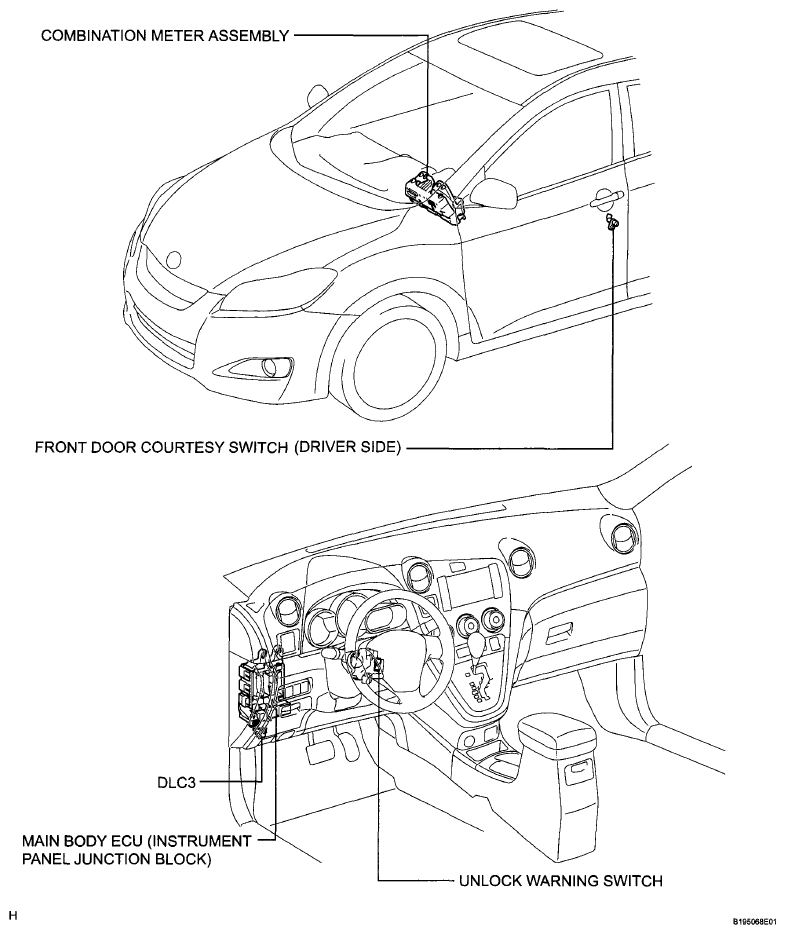

Fig 1: Identifying Key Reminder Warning System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
