Front Door Lock: Removal

  1. REMOVE FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window)  (See DISASSEMBLY )
  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL  (See DISASSEMBLY )
  3. REMOVE FRONT ARMREST UPPER BASE PANEL (w/o Power Window)  (See DISASSEMBLY )
  4. REMOVE FRONT ARMREST UPPER BASE PANEL (w/ Power Window)  (See DISASSEMBLY )
  5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY  (See DISASSEMBLY )
  6. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY  (See DISASSEMBLY )
  7. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP  (See DISASSEMBLY )
  8. REMOVE FRONT DOOR SERVICE HOLE COVER (w/o Power Door Lock)  (See DISASSEMBLY )
  9. REMOVE FRONT DOOR SERVICE HOLE COVER (w/ Power Door Lock)  (See DISASSEMBLY )
  10. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY (w/ o Power Window)  (See DISASSEMBLY )
  11. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY (w/ Power Window)  (See DISASSEMBLY )
  12. REMOVE FRONT DOOR GLASS RUN  (See DISASSEMBLY )
  13. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY  (See DISASSEMBLY )
  14. REMOVE FRONT DOOR OUTSIDE HANDLE COVER  (See DISASSEMBLY )
  15. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY  (See DISASSEMBLY )
  16. REMOVE FRONT DOOR LOCK ASSEMBLY (w/o Power Door Lock)
    1. Using a "TORX" socket wrench (T30), remove the 3 screws.
    2. Slide the front door lock assembly downward, and remove the front door lock assembly and cables as a unit.

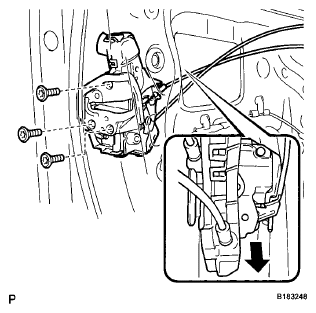

    Fig 1: Identifying Front Door Lock Assembly With Screws (W/O Power Door Lock)
    G06036392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT DOOR LOCK ASSEMBLY (w/ Power Door Lock)
    1. Using a "TORX" socket wrench (T30), remove the 3 screws.
    2. Slide the front door lock assembly downward, and remove the front door lock assembly and cables as a unit.
    3. Remove the door lock wiring harness seal from the front door lock assembly.

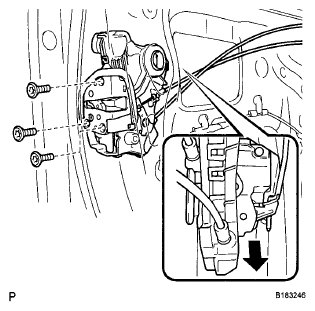

    Fig 2: Identifying Front Door Lock Assembly With Screws (W/ Power Door Lock)
    G06036393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY (w/o Power Door Lock)
    1. Remove the front door lock remote control cable assembly.
    Fig 3: Identifying Front Door Lock Remote Control Cable Assembly (W/O Power Door Lock)
    G06036394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY (w/ Power Door Lock)
    1. Remove the front door lock remote control cable assembly.
    Fig 4: Identifying Front Door Lock Remote Control Cable Assembly (W/ Power Door Lock)
    G06036395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY (w/o Power Door Lock)
    1. Remove the front door inside locking cable assembly.
    Fig 5: Identifying Front Door Lock Remote Control Cable Assembly (W/O Power Door Lock)
    G06036396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE FRONT DOOR INSIDE LOCKING CABLE ASSEMBLY (w/ Power Door Lock)
    1. Using a screwdriver, disengage the 3 claws.

      HINT:

      Tape the screwdriver tip before use.

      Fig 6: Identifying Front Door Inside Locking Cable Assembly With Claws
      G06036397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front door inside locking cable assembly.
    Fig 7: Identifying Front Door Inside Locking Cable Assembly (W/ Power Door Lock)
    G06036398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
