Door Control Receiver: Removal

  1. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  3. REMOVE REAR SEAT CUSHION ASSEMBLY  (See REMOVAL )
  4. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
  5. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
  6. DISCONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY  (See REMOVAL )
  7. REMOVE REAR SEATBACK OUTER HINGE COVER (for RH Side)  (See REMOVAL )
  8. REMOVE REAR SEATBACK INNER HINGE COVER (for RH Side)  (See REMOVAL )
  9. REMOVE REAR SEATBACK ASSEMBLY RH  (See DISASSEMBLY )
  10. REMOVE TONNEAU COVER ASSEMBLY (w/Tonneau Cover)
  11. REMOVE DECK BOARD ASSEMBLY  (See REMOVAL )
  12. REMOVE NO. 2 DECK BOARD  (See REMOVAL )
  13. REMOVE JACK CARRIER ASSEMBLY
  14. REMOVE JACK ASSEMBLY  (See REMOVAL )
  15. REMOVE DECK FLOOR BOX LH  (See REMOVAL )
  16. REMOVE DECK FLOOR BOX RH  (See REMOVAL )
  17. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR  (See CHILD RESTRAINT SEAT TETHER ANCHOR )
  18. REMOVE LUGGAGE COMPARTMENT TRAY  (See REMOVAL )
  19. REMOVE REAR DECK TRIM COVER  (See REMOVAL )
  20. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  21. REMOVE REAR SEAT SIDE GARNISH RH  (See REMOVAL )
  22. DISCONNECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH  (See REMOVAL )
  23. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  24. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  25. REMOVE REAR COMBINATION LIGHT SERVICE COVER RH (w/ Woofer)  (See REMOVAL )
  26. REMOVE SIDE DECK TRIM PANEL ASSEMBLY RH (w/o Woofer)  (See REMOVAL )
  27. REMOVE SIDE DECK TRIM PANEL ASSEMBLY RH (w/ Woofer)  (See REMOVAL )
  28. REMOVE QUARTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  29. REMOVE ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side (See REMOVAL ).

  30. REMOVE DOOR CONTROL RECEIVER
    1. Disconnect the connector.
    2. Remove the bolt and the door control receiver.

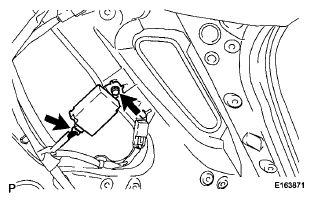

    Fig 1: Locating Door Control Receiver Connector Bolts
    G06036445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
