Tire Pressure Warning Valve: Components

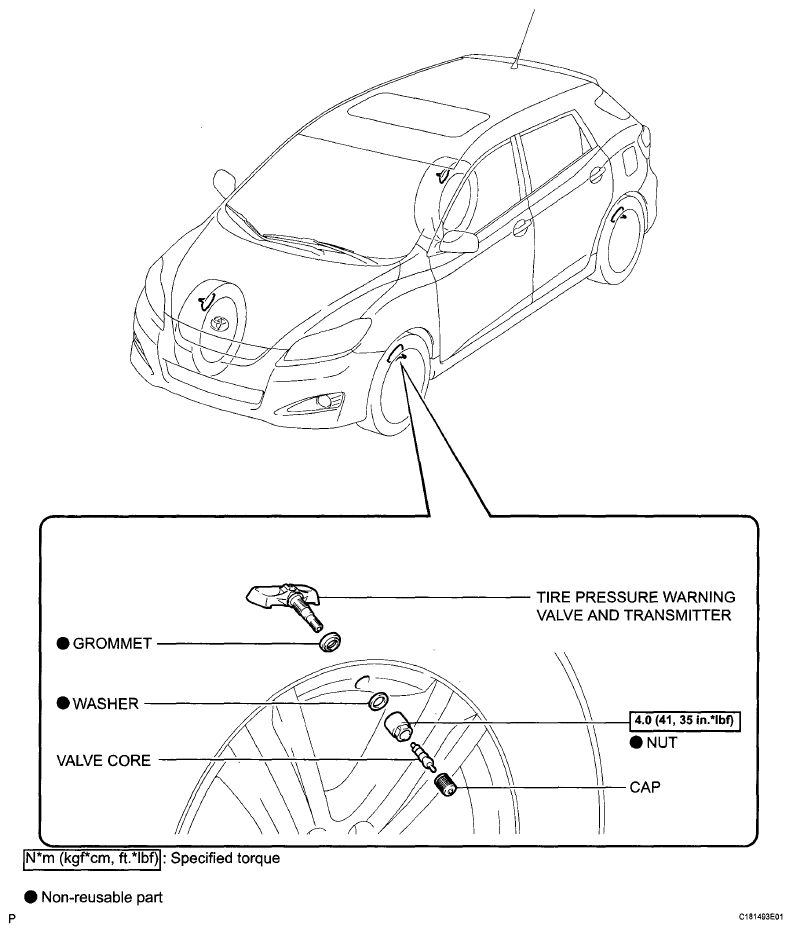

Fig 1: Tire Pressure Warning Valve Replacement Components With Torque Specifications

G06034831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
