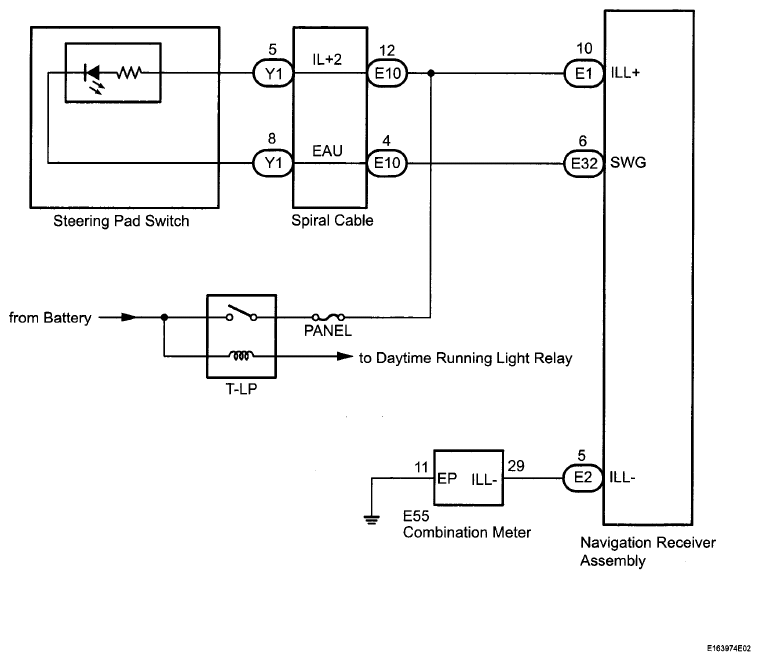

Home >> Toyota >> 2009 >> Matrix Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Navigation / Multi Info Display >> Navigation System >> Illumination Circuit >> Wiring Diagram
