Front Door Speaker: Installation

INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
1. Using an air riveter or a hand riveter, install the front No. 1 speaker assembly with 3 new rivets.

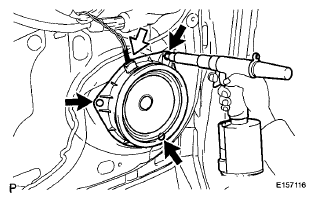

  Fig 1: Installing Front No. 1 Speaker Assembly With Rivets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.

    Fig 2: Caution For Do Not Pry Rivet With Riveter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Confirm that the rivets are seated properly against the speaker.
  - Do not tilt the riveter when installing the rivet to the speaker.
  - Do not leave any clearance between the rivet head and speaker.

    Fig 3: Caution For Do Not Leave Any Clearance Between Rivet Head And Speaker
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Do not leave any clearance between the speaker and door. Firmly hold the 2 items together while installing the rivet.
2. Connect the connector.

  Fig 4: Caution For Do Not Leave Any Clearance Between Speaker And Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for 6 Speakers)
1. Engage the 3 claws and install the front No. 2 speaker assembly.

  Fig 5: Identifying Front No. 2 Speaker Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH (for 6 Speakers) (See REASSEMBLY )
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY (See REASSEMBLY )
INSTALL FRONT ARMREST UPPER BASE PANEL (w/ o Power Window) (See REASSEMBLY )
INSTALL FRONT ARMREST UPPER BASE PANEL (w/ Power Window) (See REASSEMBLY )
INSTALL FRONT DOOR INSIDE HANDLE BEZEL (See REASSEMBLY )
INSTALL FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window) (See REASSEMBLY )
