Front Door Speaker: Components

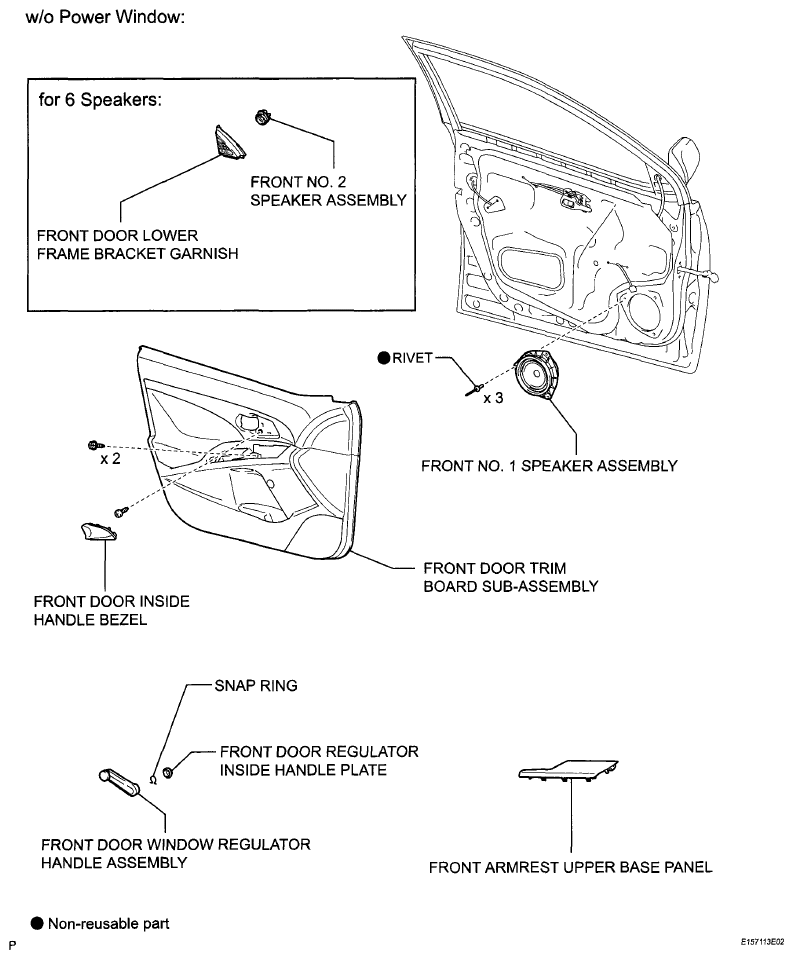

Fig 1: Identifying Front Door Speaker Components (1 Of 2)
G06035771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

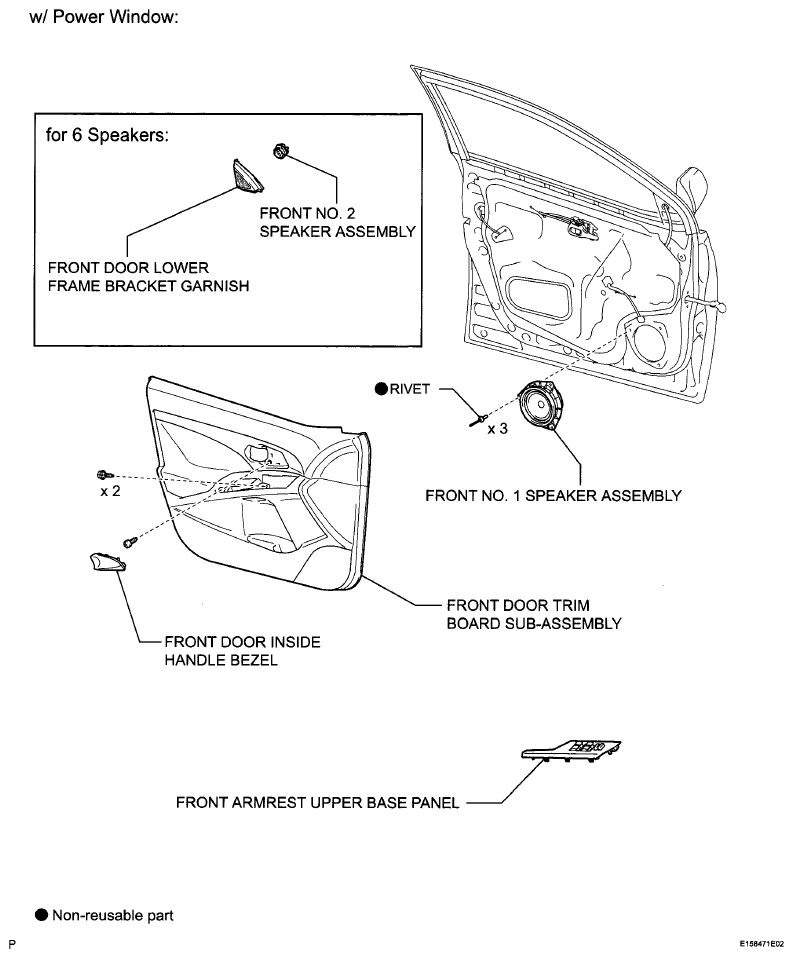

Fig 2: Identifying Front Door Speaker Components (2 Of 2)
G06035772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
