EXHAUST PIPE AND CATALYTIC CONVERTER (for 4WD): Components

WARNING: This page is about a different variant/trim than selected.

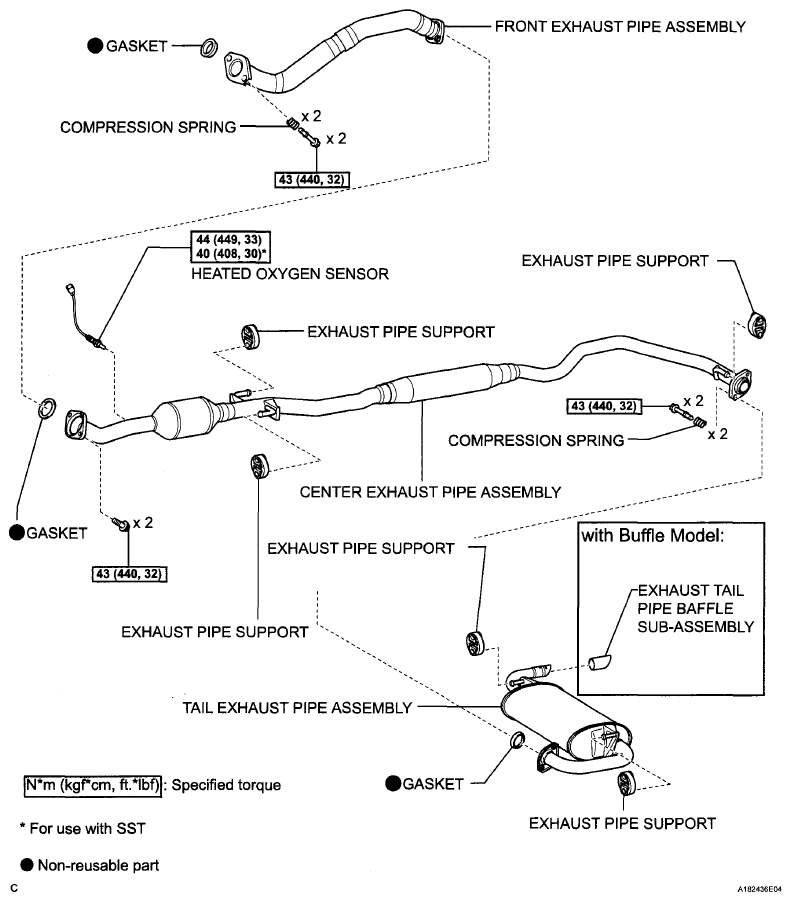

Fig 1: Exhaust Pipe Replacement Components Torque Specifications Table (For 4WD)
G06042578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
