Charging System (2ZR-FE)
>>
Charging System
>>
System Diagram
System Diagram

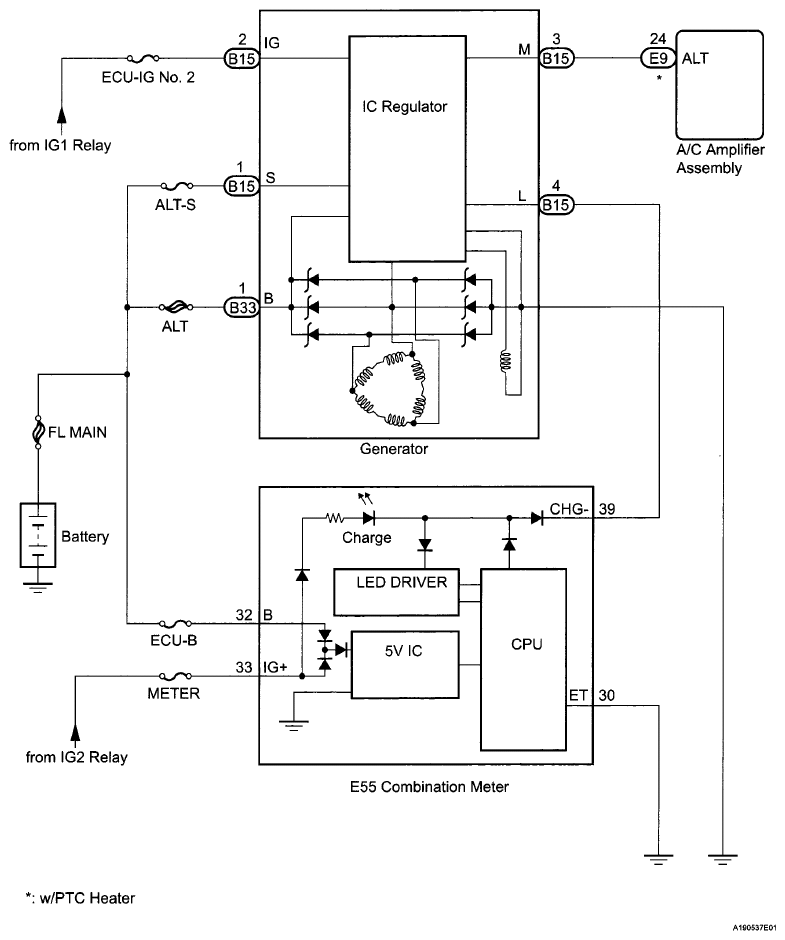

Fig 1: Charging System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
